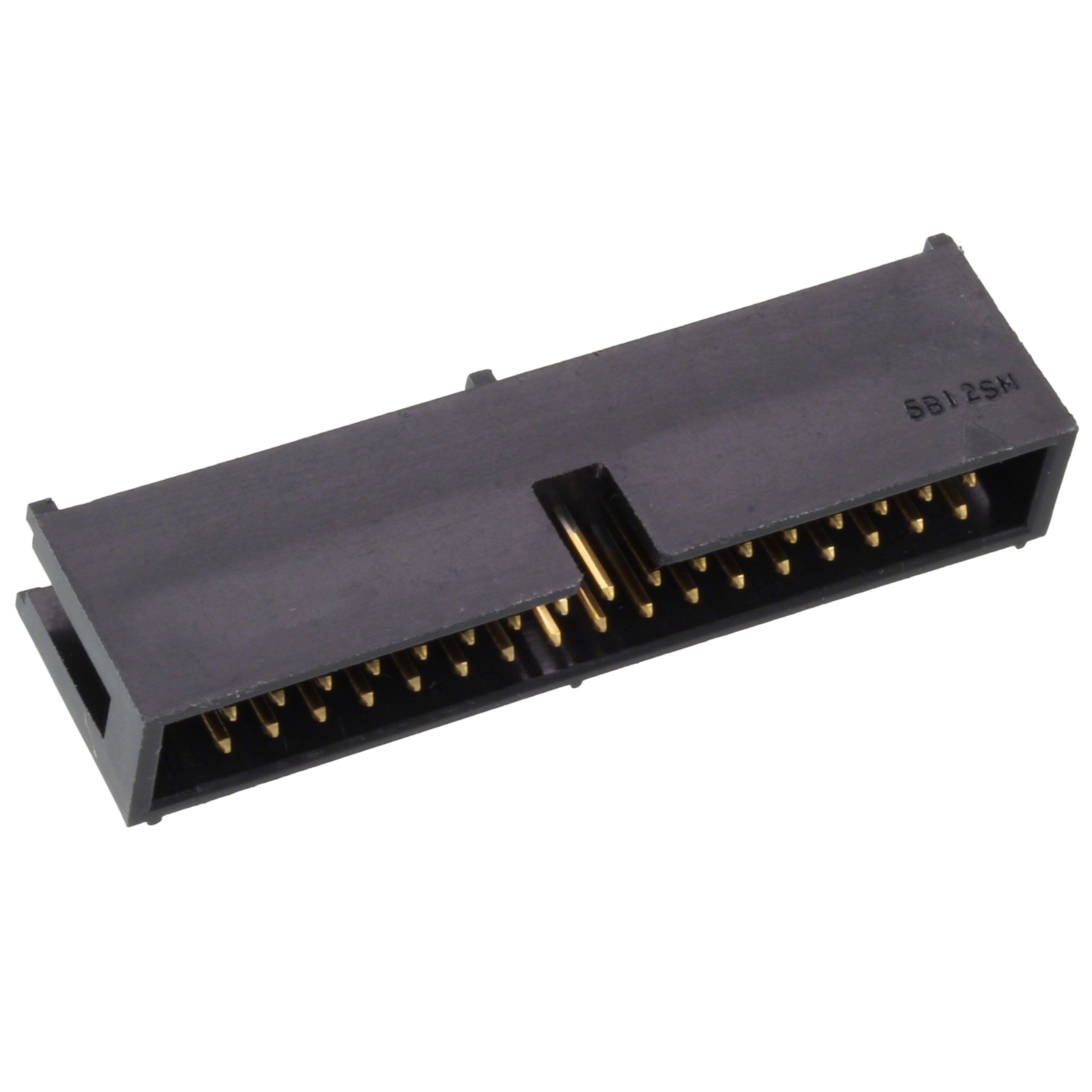

HIF3F-34PA-2.54DSA(71)

Teknik Özellikler

Pozisyon Sayısı

34

Style

Board to Cable/Wire

Akım Değeri

1A

Connector Type

Header

Rated Current Signal

1A

Çalışma Sıcaklığı

-55°C~85°C

Filter Feature

NO

Reliability

COMMERCIAL

Özellikler

Keying Slot

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Kurşunsuz

Lead Free

Mounting Option1

LOCKING

Ambalaj

Tray

Body Breadth

0.354 inch

Fastening Type

Latch Holder

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Terminal

Solder

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Mixed Contacts

NO

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

Durability

500 Cycles

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Color

Black

Body Depth

0.547 inch

Orientation

Right Angle

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Seri

HIF3

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)
