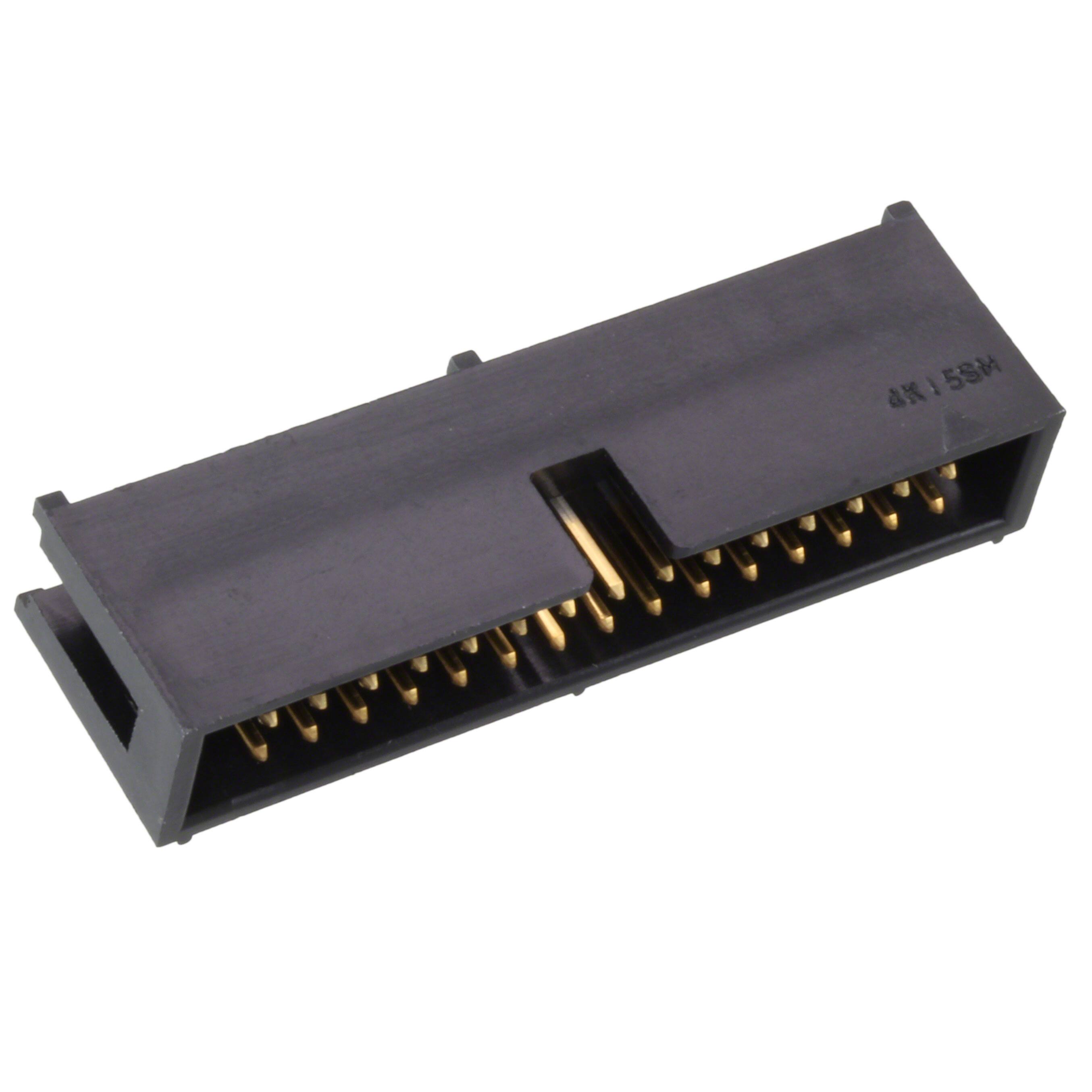

HIF3F-30PA-2.54DS(71)

Teknik Özellikler

Akım Değeri

1A

Style

Board to Cable/Wire

Pozisyon Sayısı

30

Reliability

COMMERCIAL

Filter Feature

NO

Body Length Or Diameter

1.807 inch

Çalışma Sıcaklığı

-55°C~85°C

Rated Current Signal

1A

Connector Type

Header

Parça Durumu

Active

Özellikler

Keying Slot

Length Termination

0.118 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Latch Holder

Body Breadth

0.354 inch

Ambalaj

Tray

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Terminal

Solder

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Durability

500 Cycles

Dielectric Withstanding Voltage

650VAC V

Contact Type

Male Pin

Mixed Contacts

NO

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Orientation

Straight

Body Depth

0.547 inch

Insulation Color

Black

Seri

HIF3

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks
