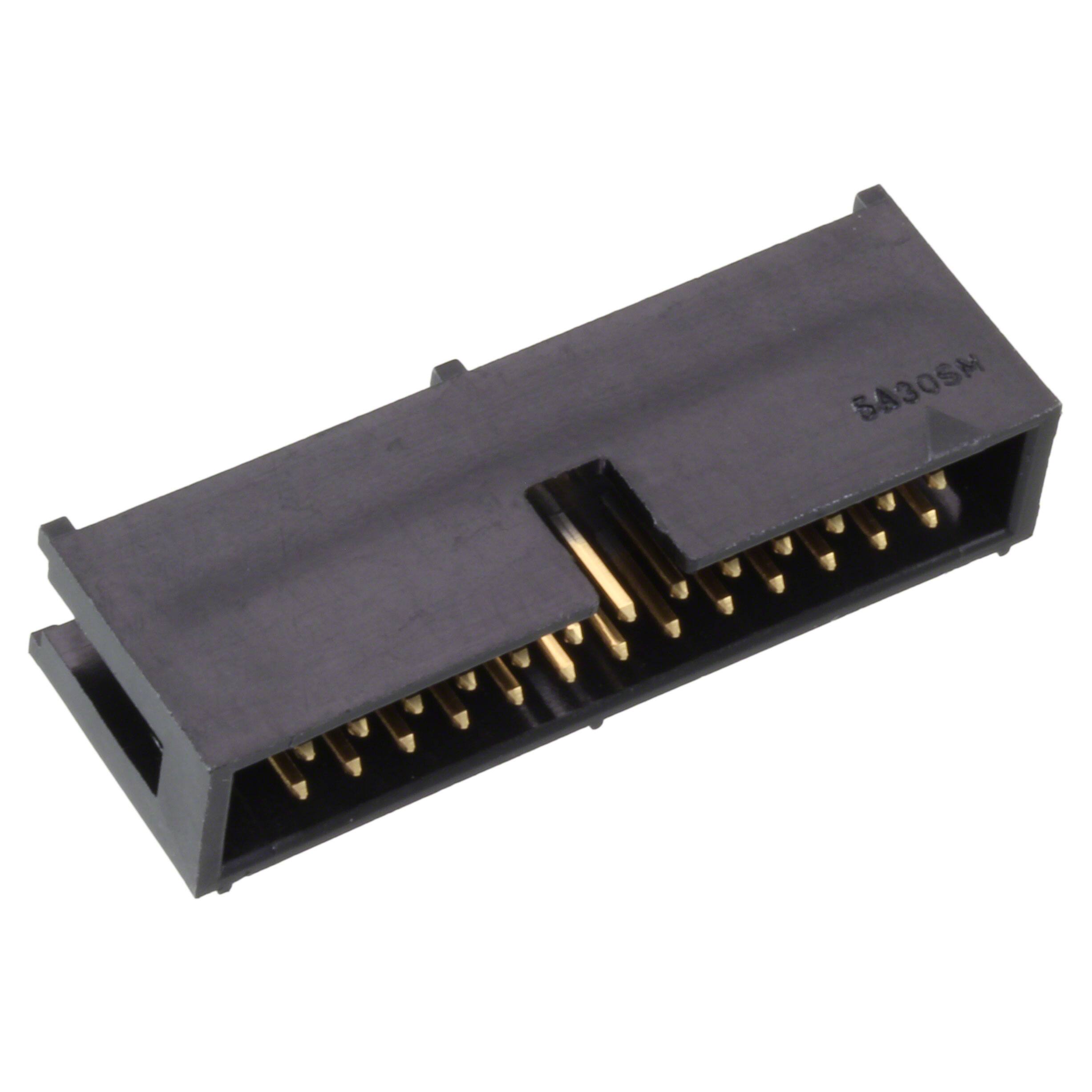

HIF3F-26PA-2.54DS(71)

Teknik Özellikler

Insulation Height

0.335 8.51mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Contact Length Post

0.118 3.00mm

HTS Kodu

8536.69.40.40

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Orientation

Straight

Insulation Color

Black

Body Depth

0.547 inch

Number Of Conductors

ONE

Seri

HIF3

Fabrika Tedarik Süresi

10 Weeks

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Mil Conformance

NO

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Post

Tin

Nominal Gerilim

200V

Kurşunsuz Kodu

no

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Özellikler

Keying Slot

Parça Durumu

Active

Length Termination

0.118 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Akım Değeri

1A

Pozisyon Sayısı

26
