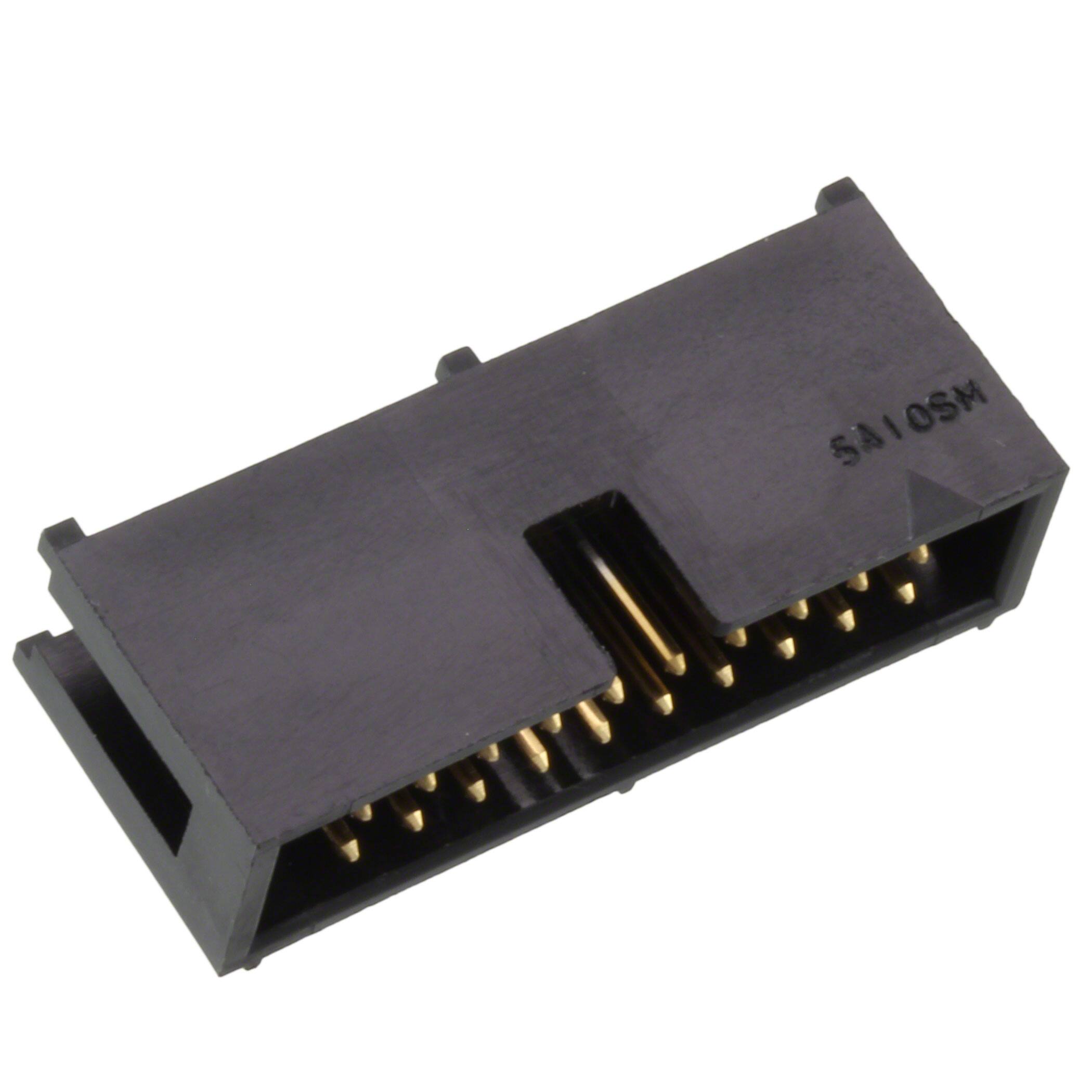

HIF3F-20PA-2.54DS(71)

Teknik Özellikler

Mil Conformance

NO

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Kurşunsuz Kodu

no

Nominal Gerilim

200V

Contact Finish Post

Tin

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

HTS Kodu

8536.69.40.40

Contact Length Post

0.118 3.00mm

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.335 8.51mm

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF3

Number Of Conductors

ONE

Body Depth

0.547 inch

Insulation Color

Black

Orientation

Straight

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Mixed Contacts

NO

Dielectric Withstanding Voltage

650VAC V

Contact Type

Male Pin

Ul Flammability Code

94V-0

Durability

500 Cycles

Insulation Materials

Polybutylene Terephthalate (PBT)

Material Flammability Rating

UL94 V-0
