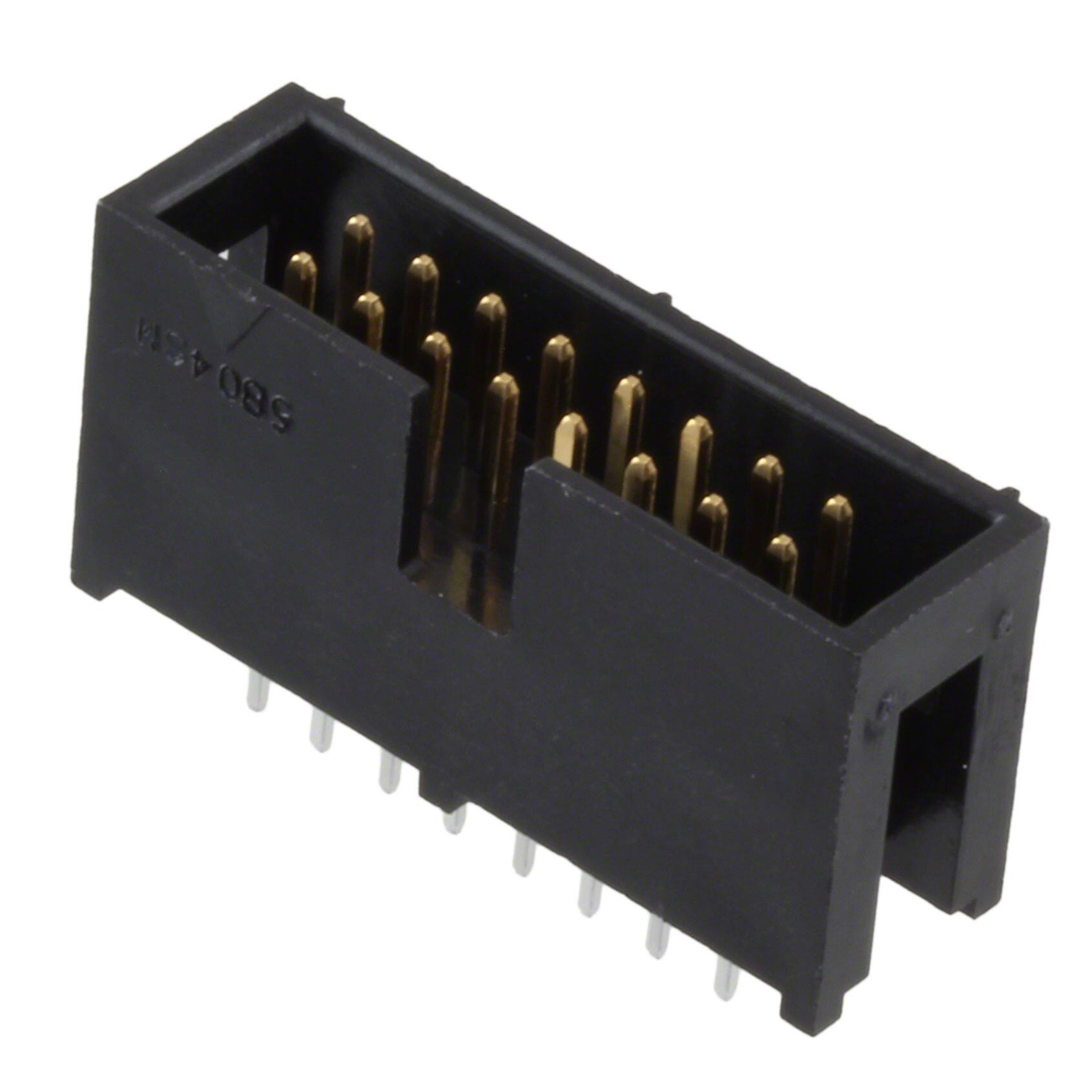

HIF3F-16PA-2.54DS(71)

Teknik Özellikler

Nominal Gerilim

200V

Contact Finish Post

Tin

Ambalaj

Tray

Sıra Sayısı

2

Din Conformance

NO

Fastening Type

Latch Holder

Contact Finish Mating

Gold

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Terminal

Solder

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Contact Materials

Brass

ECCN Kodu

EAR99

Contact Type

Male Pin

Mil Conformance

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Orientation

Straight

Akım Değeri

1A

Style

Board to Cable/Wire

Pozisyon Sayısı

16

JESD-609 Kodu

e4

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Seri

HIF3

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.335 8.51mm

Parça Durumu

Active

Özellikler

Keying Slot

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Mating

8.00μin 0.203μm
