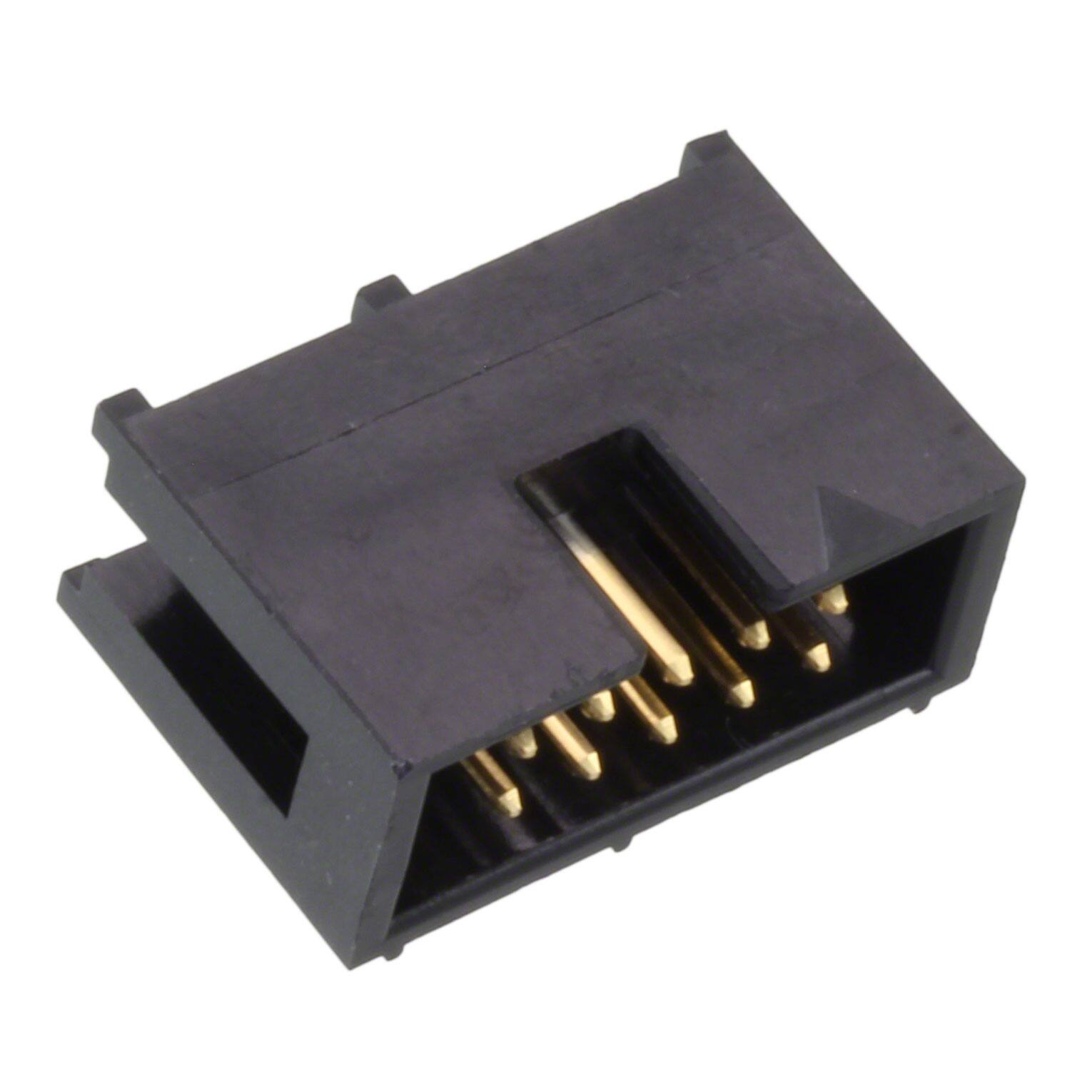

HIF3F-10PA-2.54DSA(71)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF3

Orientation

Straight

JESD-609 Kodu

e4

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.130 3.30mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Shape

Square

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.547 13.90mm

Overall Contact Length

0.622 15.80mm

Contact Finish Mating

Gold

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Sıra Sayısı

2

Voltage Rated Ac

200V

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Reliability

COMMERCIAL

Akım Değeri

1A

Style

Board to Cable/Wire

Pozisyon Sayısı

10

RoHS Durumu

RoHS Compliant

Yükseklik

13.9mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Parça Durumu

Active

Özellikler

Keying Slot

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Terminal

Solder
