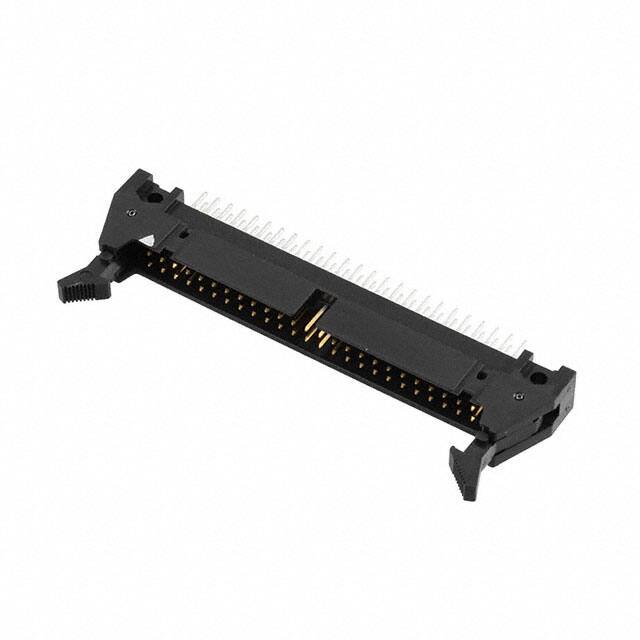

HIF3CB-50PA-2.54DSA(71)

Teknik Özellikler

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Contact Materials

Brass

Ul Flammability Code

94V-0

Mil Conformance

YES

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Contact Type

Male Pin

Fastening Type

Latch Lock/Eject Hooks

Option

GENERAL PURPOSE

Din Conformance

NO

Sıra Sayısı

2

Kurşunsuz

Lead Free

Nominal Gerilim

200V

Ambalaj

Tray

Contact Finish Post

Tin

Terminal

Solder

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Parça Durumu

Active

Overall Contact Length

0.657 16.70mm

Özellikler

Keying Slot

Insulation Height

0.701 17.80mm

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Shape

Square

Additional Feature

POLARIZED

HTS Kodu

8536.69.40.40

Current Rating Amps

1A

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Length Post

0.130 3.30mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Pozisyon Sayısı

50
