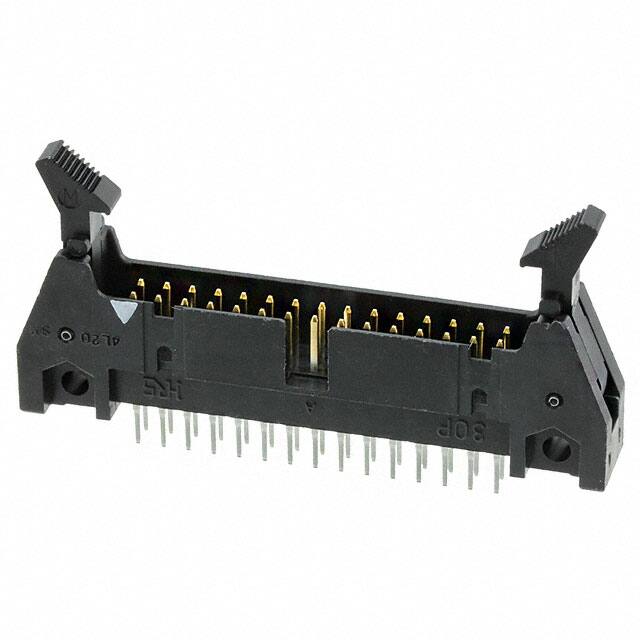

HIF3CA-30PA-2.54DSA(71)

Teknik Özellikler

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Terminal

Solder

Contact Finish Post

Tin

Ambalaj

Tray

Nominal Gerilim

200V

Kurşunsuz

Lead Free

Din Conformance

NO

Sıra Sayısı

2

Fastening Type

Latch Lock/Eject Hooks

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mixed Contacts

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Mil Conformance

YES

Ul Flammability Code

94V-0

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Seri

HIF3C

Filter Feature

NO

Style

Board to Cable/Wire

Insulation Color

Black

Pozisyon Sayısı

30

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Length Post

0.130 3.30mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Additional Feature

POLARIZED

HTS Kodu

8536.69.40.40

Current Rating Amps

1A
