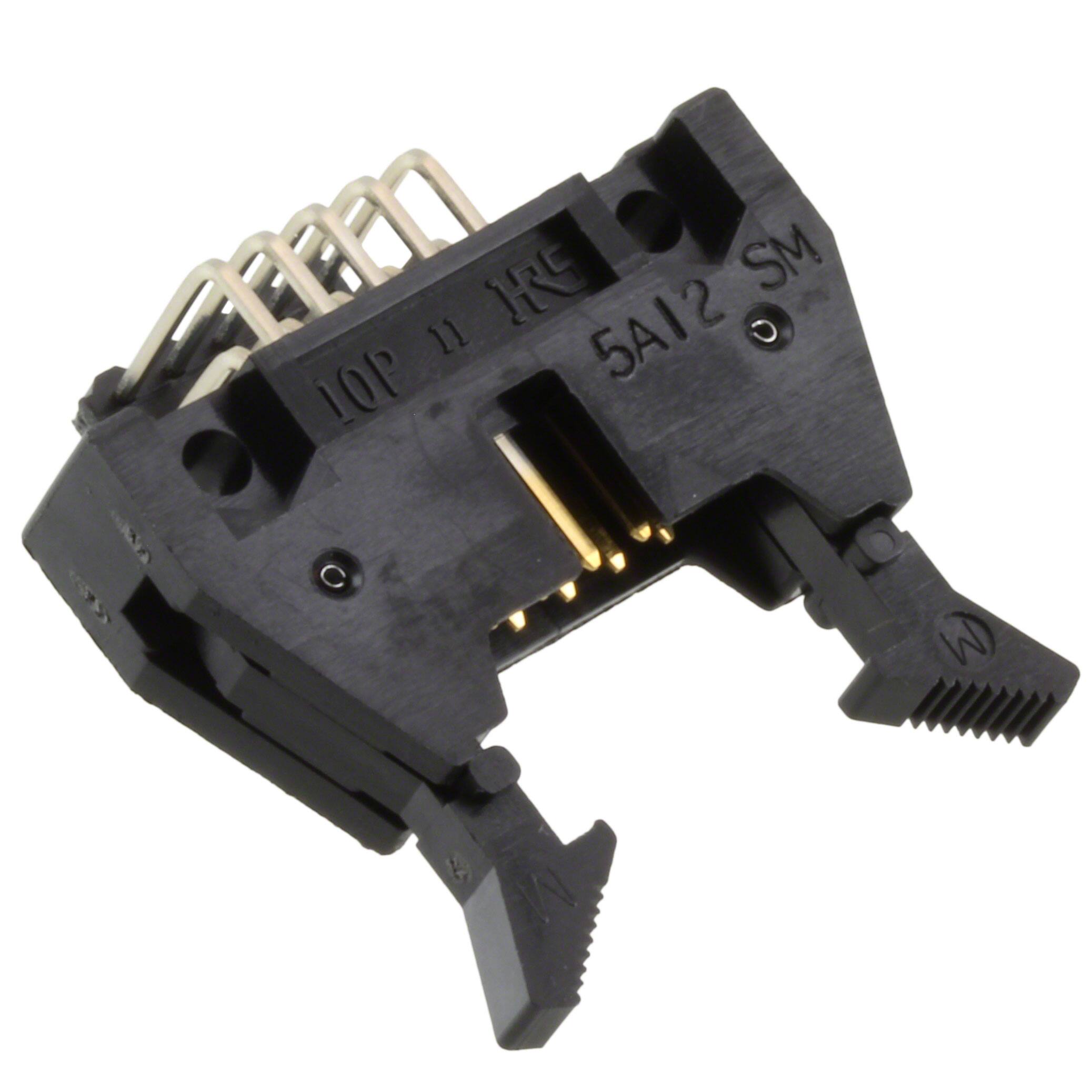

HIF3BD-10PA-2.54DS(71)

Teknik Özellikler

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.335 8.51mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.118 3.00mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

HTS Kodu

8536.69.40.40

Orientation

Right Angle

Insulation Color

Black

JESD-609 Kodu

e4

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Seri

HIF3B

Number Of Conductors

ONE

Contact Materials

Brass

Reference Standard

UL

Insulation Resistance

1GOhm

Number Of Pcb Rows

2

Mil Conformance

NO

Nominal Gerilim

200V

Contact Finish Post

Tin

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Length Termination

0.118 inch

Parça Durumu

Active

Özellikler

Mounting Flange

Mounting Option2

LOCKING

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Additional Feature

POLARIZED

Akım Değeri

1A
