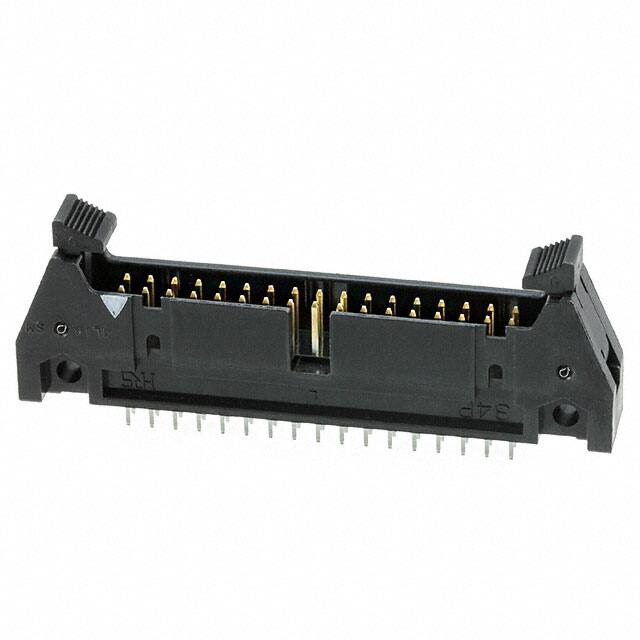

HIF3BAG-34PA-2.54DSA(71)

Teknik Özellikler

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Contact Finish Thickness Post

78.7μin 2.00μm

Reference Standard

UL

Contact Finish Thickness Mating

8.00μin 0.203μm

Çalışma Sıcaklığı

-55°C~85°C

Mating Contact Pitch

0.1 inch

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Contact Lengthmating

0.236 6.00mm

Body Depth

0.7 inch

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

2

Kurşunsuz

Lead Free

Sıra Sayısı

2

Body Breadth

0.335 inch

Length Termination

0.13 inch

Nominal Gerilim

200V

Reliability

COMMERCIAL

Pozisyon Sayısı

34

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Durability

500 Cycles

Rated Current Signal

1A

Akım Değeri

1A

Number Of Positions Loaded

All

Mounting Option2

LOCKING

Number Of Conductors

ONE

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.130 3.30mm

Contact Materials

Brass

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.701 17.80mm

Contact Shape

Square
