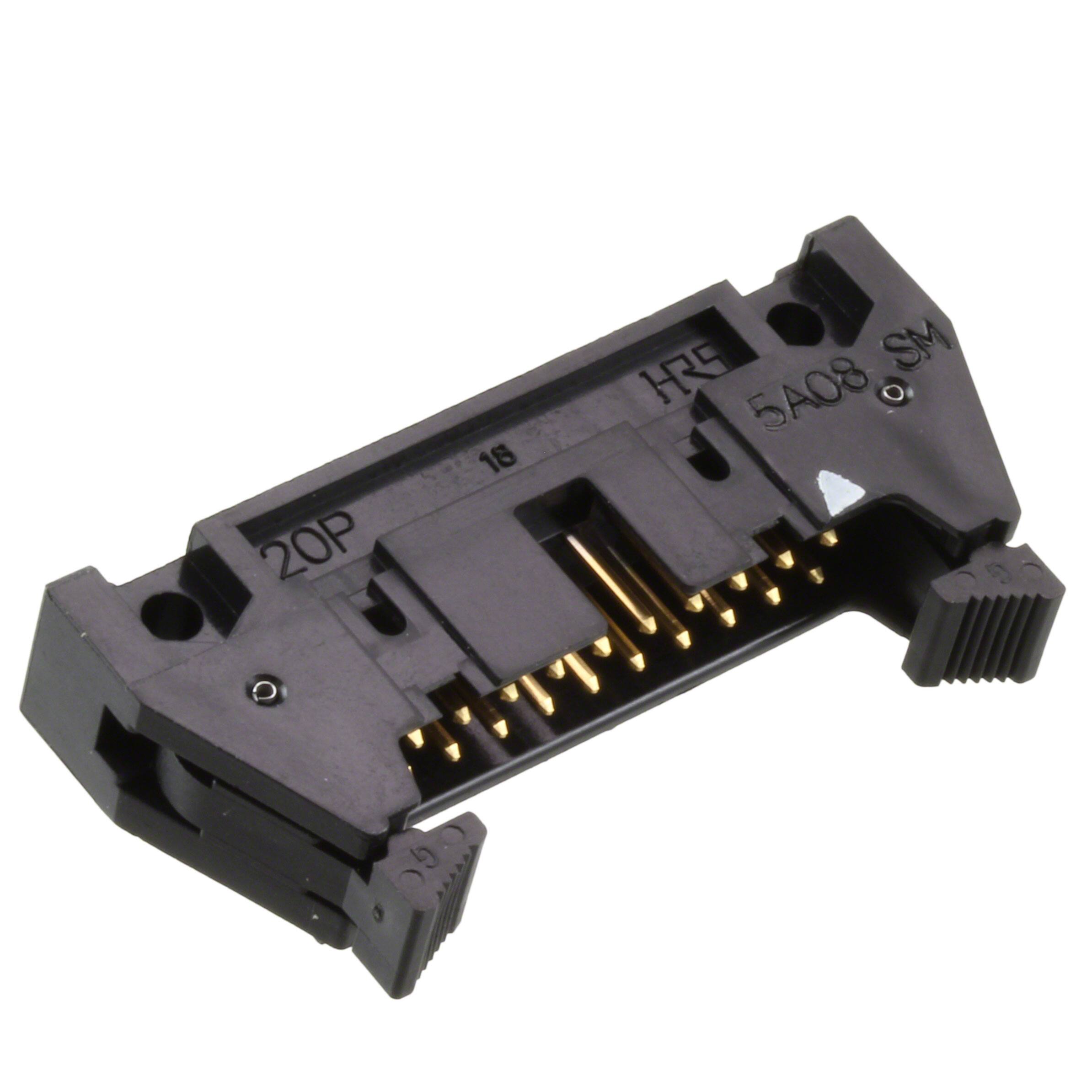

HIF3BAG-20PA-2.54DS(71)

Teknik Özellikler

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Insulation Height

0.335 8.51mm

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Pitch Mating

0.100 2.54mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Insulation Materials

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Additional Feature

POLARIZED

Parça Durumu

Active

Fastening Type

Latch Lock/Eject Hooks

Option

GENERAL PURPOSE

Mixed Contacts

NO

Akım Değeri

1A

Contact Finish Mating

Gold

Pozisyon Sayısı

20

Mil Conformance

NO

Iec Conformance

NO

Nominal Gerilim

200V

Seri

HIF3B

Style

Board to Cable/Wire

Insulation Resistance

1GOhm

Ul Flammability Code

94V-0

Contact Type

Male Pin

Özellikler

Keying Slot, Mounting Flange

Terminal

Solder

Sıra Sayısı

2

Row Spacing Mating

0.100 (2.54mm)

Filter Feature

NO
