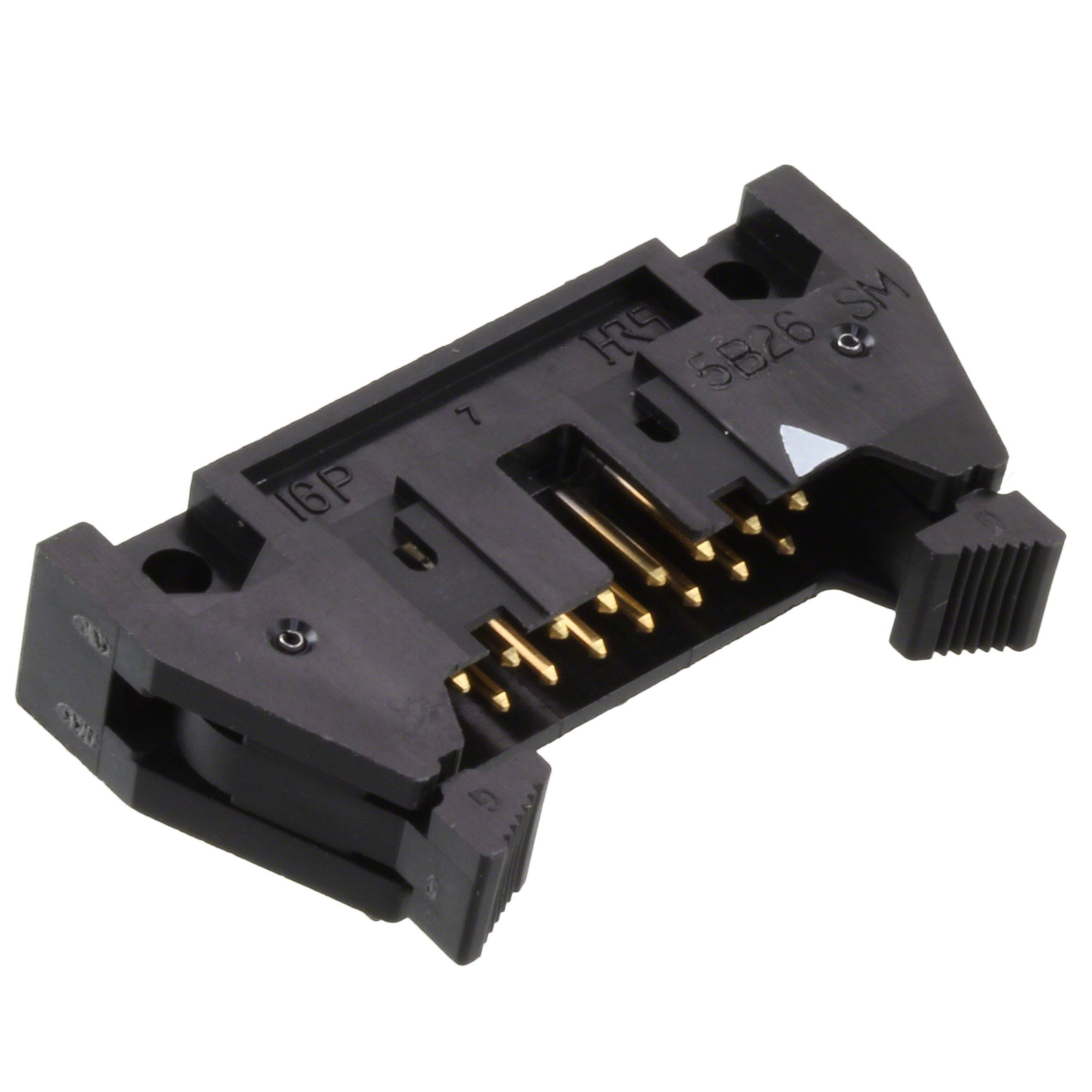

HIF3BAG-16PA-2.54DSA(71)

Teknik Özellikler

Contact Length Post

0.130 3.30mm

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Insulation Materials

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Contact Finish Thickness Mating

8.00μin 0.203μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Insulation Height

0.701 17.80mm

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Type

Male Pin

Özellikler

Keying Slot

Terminal

Solder

Sıra Sayısı

2

Row Spacing Mating

0.100 (2.54mm)

Overall Contact Length

0.657 16.70mm

RoHS Durumu

RoHS Compliant

Connector Type

Header

ECCN Kodu

EAR99

Montaj Tipi

Through Hole

Contact Lengthmating

0.236 6.00mm

Parça Durumu

Active

Fastening Type

Latch Lock/Eject Hooks

Akım Değeri

1A

Pozisyon Sayısı

16

Contact Finish Mating

Gold

Seri

HIF3B

Nominal Gerilim

200V

HTS Kodu

8536.69.40.40

Style

Board to Cable/Wire

Insulation Resistance

1GOhm
