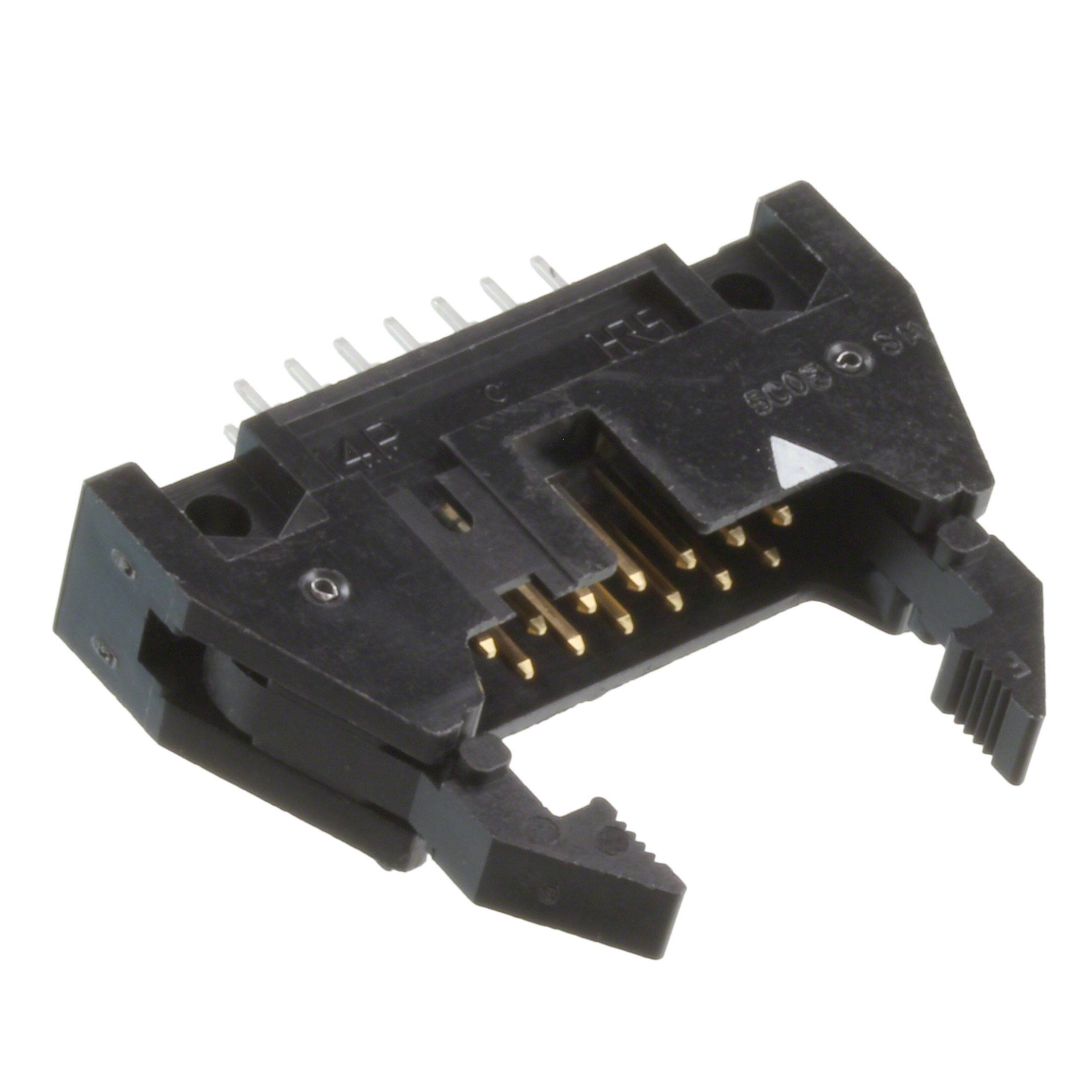

HIF3BAF-14PA-2.54DS(71)

Teknik Özellikler

Contact Lengthmating

0.236 6.00mm

Montaj Tipi

Through Hole, Right Angle

ECCN Kodu

EAR99

Connector Type

Header

RoHS Durumu

RoHS Compliant

Row Spacing Mating

0.100 (2.54mm)

Özellikler

Keying Slot, Mounting Flange

Terminal

Solder

Sıra Sayısı

2

Contact Type

Male Pin

Insulation Resistance

1GOhm

Style

Board to Cable/Wire

HTS Kodu

8536.69.40.40

Seri

HIF3B

Nominal Gerilim

200V

Pozisyon Sayısı

14

Contact Finish Mating

Gold

Akım Değeri

1A

Fastening Type

Latch Lock/Eject Hooks

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Number Of Positions Loaded

All

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Contact Finish Thickness Post

78.7μin 2.00μm

Material Flammability Rating

UL94 V-0

Contact Length Post

0.118 3.00mm

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-55°C~85°C

Pitch Mating

0.100 2.54mm

Contact Shape

Square

Insulation Height

0.335 8.51mm

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Brass

Contact Finish Thickness Mating

8.00μin 0.203μm
