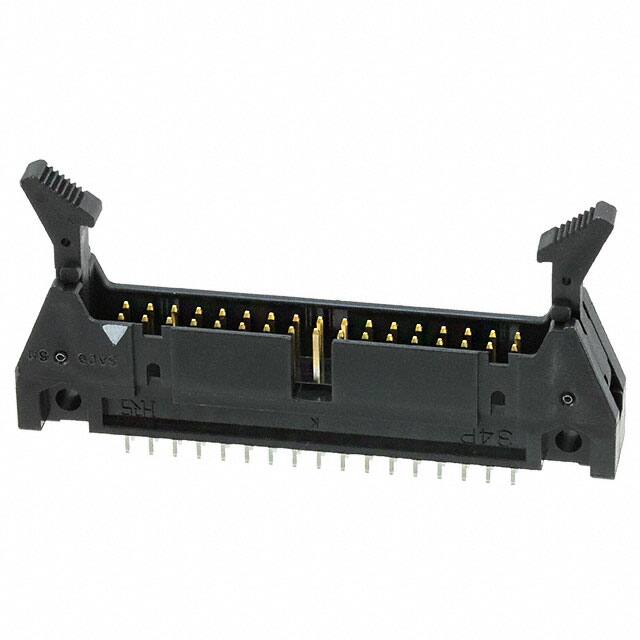

HIF3BAE-34PA-2.54DSA(71)

Teknik Özellikler

Parça Durumu

Active

Fastening Type

Latch Lock/Eject Hooks

Seri

HIF3B

Insulation Resistance

1GOhm

Contact Type

Male Pin

Terminal

Solder

Özellikler

Keying Slot

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Montaj Tipi

Through Hole

Overall Contact Length

0.657 16.70mm

Contact Materials

Brass

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Contact Shape

Square

Insulation Height

0.701 17.80mm

Contact Resistance

15mOhm

Contact Length Post

0.130 3.30mm

Dielectric Withstanding Voltage

650VAC V

Number Of Positions Loaded

All

Number Of Conductors

ONE

Mounting Option2

LOCKING

REACH Uyumluluk Kodu

unknown

Akım Değeri

1A

Nominal Gerilim

200V

Length Termination

0.13 inch

Reliability

COMMERCIAL

Pozisyon Sayısı

34

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Durability

500 Cycles

Rated Current Signal

1A

Number Of Pcb Rows

2

Sıra Sayısı

2

Body Breadth

0.335 inch

Contact Lengthmating

0.236 6.00mm

Body Depth

0.701 inch

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm
