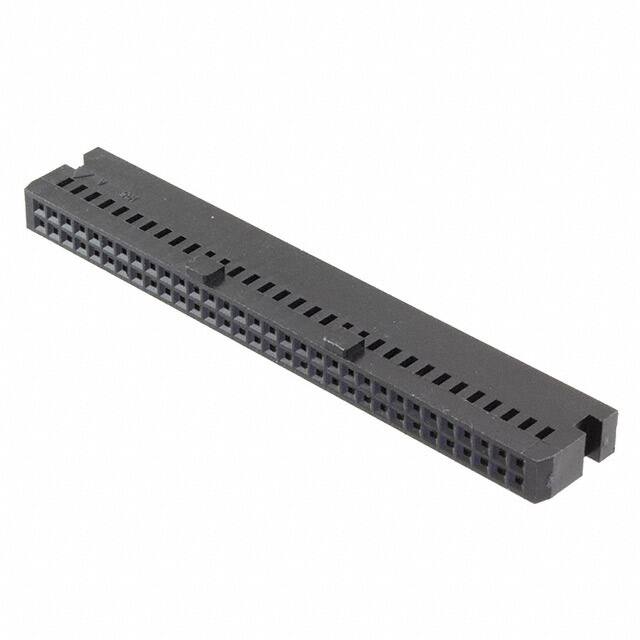

HIF3BA-64D-2.54C

Teknik Özellikler

Montaj

PCB

Fabrika Tedarik Süresi

10 Weeks

Orientation

Straight

Din Conformance

NO

Contact Plating

Gold

Operating Temperature Max

85°C

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Gender

Female

Reference Standard

UL

Operating Temperature Min

-55°C

Ul Flammability Code

94V-0

Yükseklik

7.2mm

Kurşunsuz

Lead Free

Sıra Sayısı

2

RoHS Durumu

RoHS Compliant

Additional Feature

POLARIZED

Pitch

0.100 2.54mm

Housing Material

Polybutylene

Akım Değeri

1A

Mil Conformance

NO

Pozisyon Sayısı

64

Contact Finish Mating

NOT SPECIFIED

Iec Conformance

NO

Reliability

COMMERCIAL

Nominal Gerilim

200V

Rated Current Signal

1A

Durability

500 Cycles

Dielectric Withstanding Voltage

650VAC V

Renk

Black

Row Spacing

0.100 (2.54mm)

Depth

14.4mm

REACH Uyumluluk Kodu

unknown

Contact Materials

NOT SPECIFIED

Uzunluk

85.85mm

Contact Termination

Crimp

Contact Resistance

15mOhm

Note

Contacts Not Included

Contact Type

Female Socket
