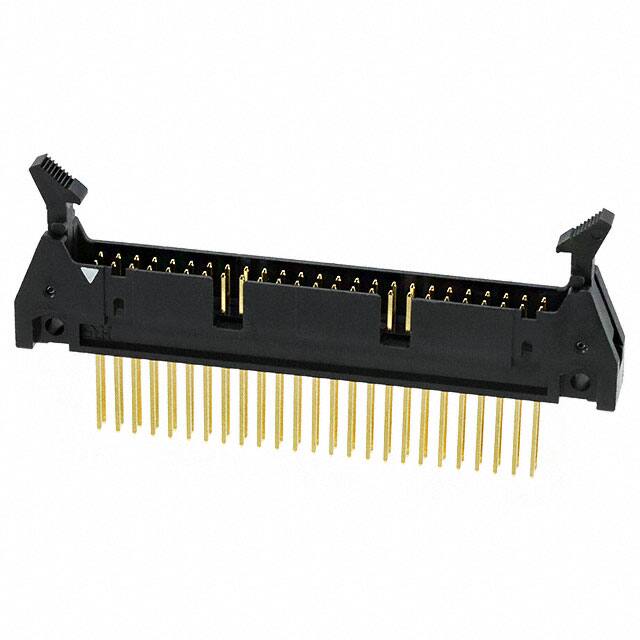

HIF3BA-50P-2.54W

Teknik Özellikler

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Insulation Height

0.701 17.80mm

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Brass

Contact Resistance

15mOhm

Contact Length Post

0.516 13.10mm

Mounting Option1

LATCH & EJECT

REACH Uyumluluk Kodu

unknown

Contact Gender

Male

Number Of Positions Loaded

All

Number Of Conductors

ONE

Mounting Option2

LOCKING

Option

GENERAL PURPOSE

Mixed Contacts

NO

Fastening Type

Latch Lock/Eject Hooks

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

Insulation Resistance

1GOhm

HTS Kodu

8536.69.40.40

Seri

HIF3B

Row Spacing Mating

0.100 (2.54mm)

Özellikler

Keying Slot

Terminal

Wire Wrap

Contact Type

Male Pin

Montaj Tipi

Through Hole

Connector Type

Header

ECCN Kodu

EAR99

Overall Contact Length

1.043 26.50mm

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-55°C~85°C

Mating Contact Pitch

0.1 inch

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

8.00μin 0.203μm

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Material Flammability Rating

UL94 V-0
