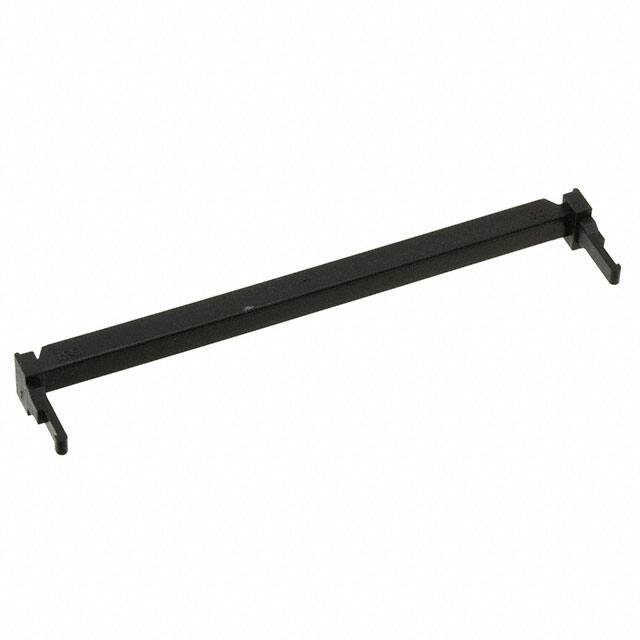

HIF3BA-50D-2.54C

Teknik Özellikler

Filter Feature

NO

ECCN Kodu

EAR99

Connector Type

Receptacle

Montaj Tipi

Free Hanging (In-Line)

Contact Type

Female Socket

Note

Contacts Not Included

Özellikler

Polarizing Key

Seri

HIF3B

Total Number Of Contacts

50

Genişlik

6mm

Insulation Resistance

1GOhm

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Option

GENERAL PURPOSE

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Gender

Female

Depth

14.4mm

REACH Uyumluluk Kodu

unknown

Renk

Black

Row Spacing

0.100 (2.54mm)

Contact Termination

Crimp

Uzunluk

68.04mm

Contact Resistance

15mOhm

Contact Materials

NOT SPECIFIED

RoHS Durumu

RoHS Compliant

Yükseklik

7.2mm

Ul Flammability Code

94V-0

Sıra Sayısı

2

Nominal Gerilim

200V

Reliability

COMMERCIAL

Mil Conformance

NO

Pozisyon Sayısı

50

Contact Finish Mating

NOT SPECIFIED

Iec Conformance

NO

Rated Current Signal

1A

Pitch

0.100 2.54mm

Additional Feature

POLARIZED

Akım Değeri

1A

Housing Material

Polybutylene
