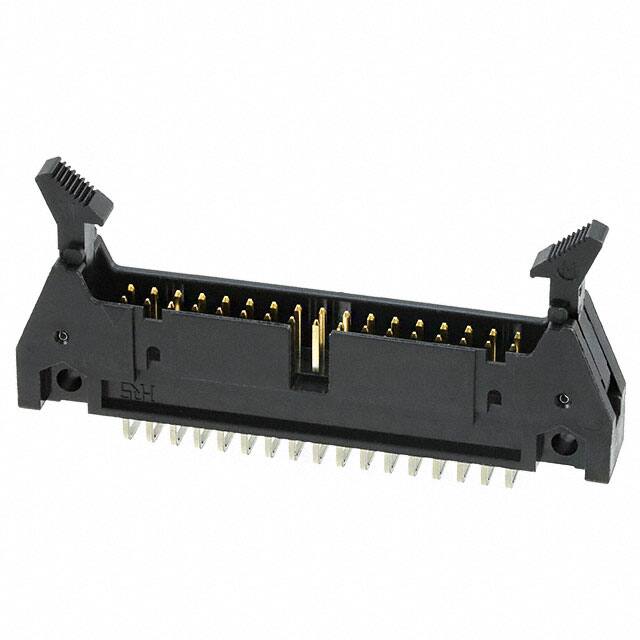

HIF3BA-34PA-2.54WB(71)

Teknik Özellikler

Filter Feature

NO

ECCN Kodu

EAR99

Connector Type

Header

Montaj Tipi

Through Hole, Right Angle

Contact Type

Male Pin

Özellikler

Keying Slot, Mounting Flange

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)

Seri

HIF3B

HTS Kodu

8536.69.40.40

Insulation Resistance

1GOhm

Parça Durumu

Active

Fastening Type

Latch Lock/Eject Hooks

Option

GENERAL PURPOSE

Mixed Contacts

NO

Mounting Option2

LOCKING

Number Of Conductors

ONE

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Mounting Option1

LATCH & EJECT

Dielectric Withstanding Voltage

650VAC V

Contact Length Post

0.118 3.00mm

Contact Resistance

15mOhm

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.335 8.51mm

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Insulation Color

Black

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.236 6.00mm

Ul Flammability Code

94V-0

Number Of Pcb Rows

2

Kurşunsuz

Lead Free

Sıra Sayısı

2

Body Breadth

0.63 inch

Contact Finish Mating

Gold

Pozisyon Sayısı

34

Mil Conformance

YES

Iec Conformance

NO
