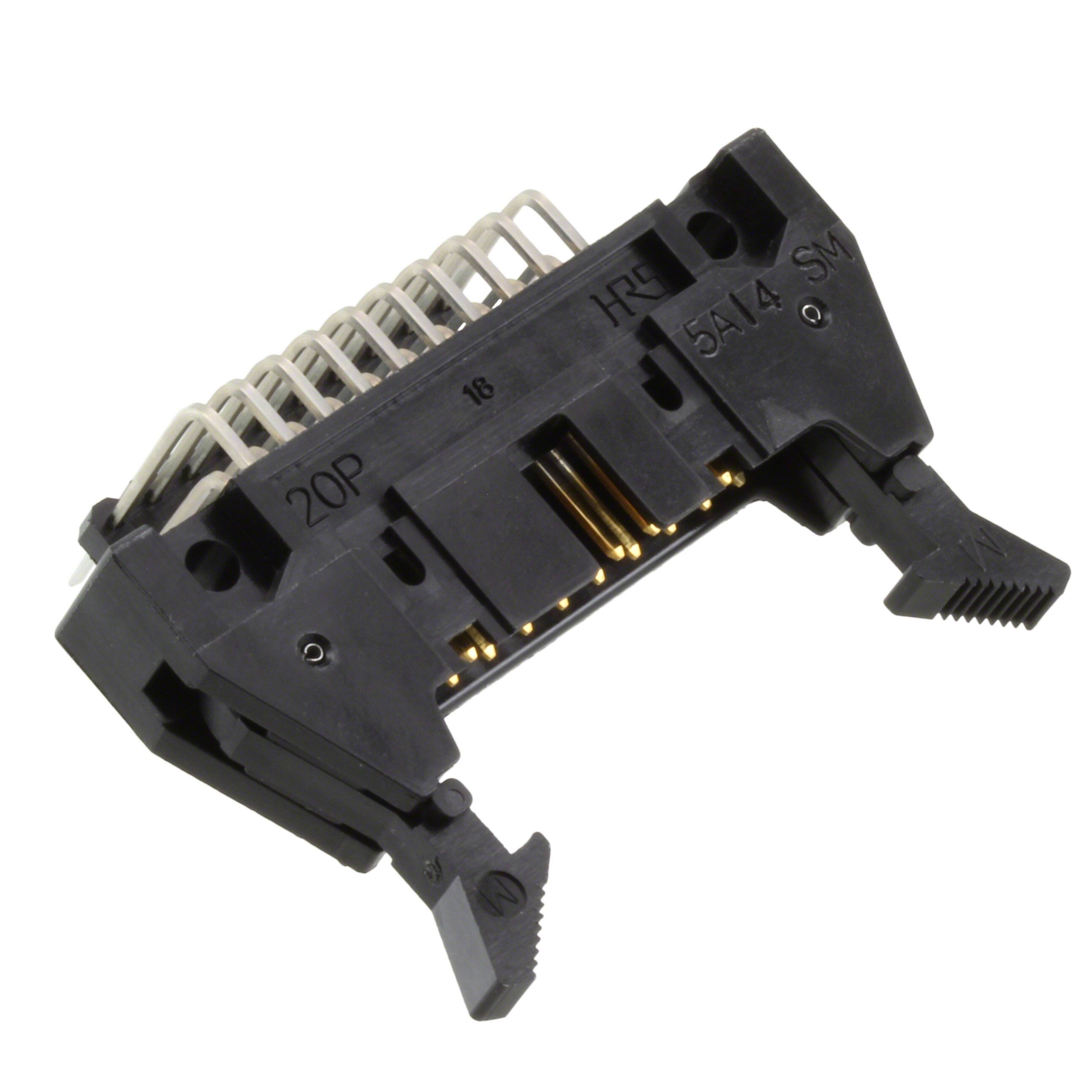

HIF3BA-20PA-2.54DSA(71)

Teknik Özellikler

Filter Feature

NO

Overall Contact Length

0.657 16.70mm

Connector Type

Header

ECCN Kodu

EAR99

Montaj Tipi

Through Hole

Contact Type

Male Pin

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)

Seri

HIF3B

HTS Kodu

8536.69.40.40

Insulation Resistance

1GOhm

Parça Durumu

Active

Fastening Type

Latch Lock/Eject Hooks

Mixed Contacts

NO

Option

GENERAL PURPOSE

Number Of Conductors

ONE

Mounting Option2

LOCKING

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

650VAC V

Mounting Option1

LATCH & EJECT

Contact Length Post

0.130 3.30mm

Uzunluk

44.7mm

Contact Resistance

15mOhm

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Contact Shape

Square

Insulation Height

0.701 17.80mm

Pitch Mating

0.100 2.54mm

Insulation Color

Black

RoHS Durumu

RoHS Compliant

Body Depth

0.701 inch

Contact Lengthmating

0.236 6.00mm

Ul Flammability Code

94V-0

Number Of Pcb Rows

2

Yükseklik

27.3mm

Kurşunsuz

Lead Free

Sıra Sayısı

2

Body Breadth

0.354 inch

Contact Finish Mating

Gold

Pozisyon Sayısı

20
