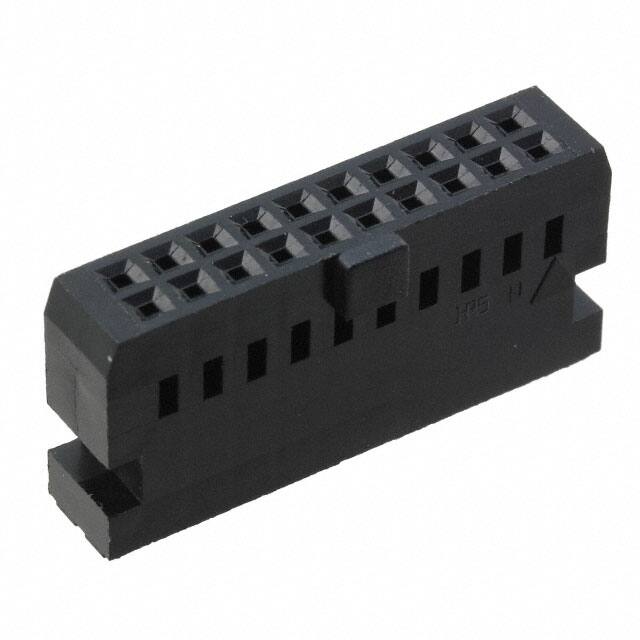

HIF3BA-20D-2.54C

Teknik Özellikler

Polarization Key

POLARIZED HOUSING

Operating Temperature Max

85°C

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Operating Temperature Min

-55°C

Montaj

Free Hanging, PCB

Fabrika Tedarik Süresi

10 Weeks

Orientation

Straight

Contact Plating

Gold

Din Conformance

NO

Additional Feature

POLARIZED

Pitch

0.100 2.54mm

Housing Material

Polybutylene

Akım Değeri

1A

Iec Conformance

NO

Mil Conformance

NO

Pozisyon Sayısı

20

Contact Finish Mating

NOT SPECIFIED

Nominal Gerilim

200V

Reliability

COMMERCIAL

Rated Current Signal

1A

Durability

500 Cycles

Ul Flammability Code

94V-0

Yükseklik

7.2mm

Sıra Sayısı

2

RoHS Durumu

RoHS Compliant

Contact Materials

Copper

Uzunluk

29.95mm

Contact Termination

Crimp

Contact Resistance

15mOhm

Dielectric Withstanding Voltage

650VAC V

Renk

Black

Row Spacing

0.100 (2.54mm)

Contact Gender

Female

REACH Uyumluluk Kodu

unknown

Depth

14.4mm

Parça Durumu

Active

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE
