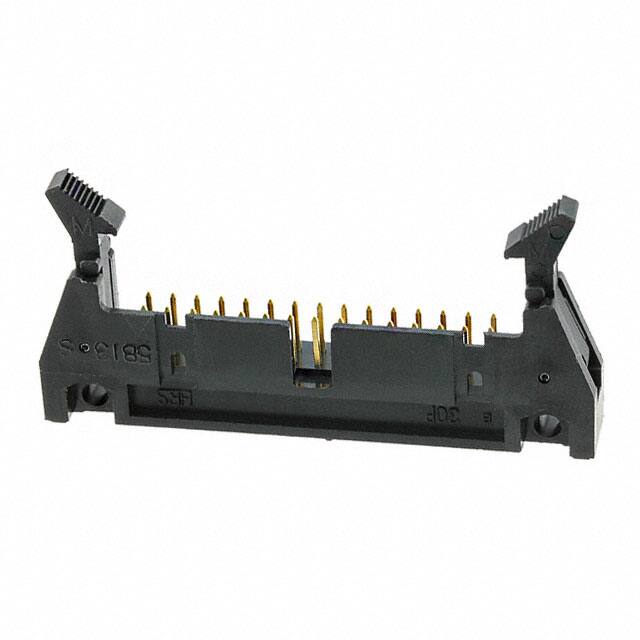

HIF3B-30PA-2.54DS(71)

Teknik Özellikler

Contact Shape

Square

Ambalaj

Tray

Insulation Height

0.303 7.70mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-55°C~85°C

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Materials

Brass

Contact Finish Thickness Post

78.7μin 2.00μm

Material Flammability Rating

UL94 V-0

Contact Length Post

0.114 2.90mm

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Number Of Positions Loaded

All

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Post

Tin

Fastening Type

Latch Lock/Eject Hooks

Akım Değeri

1A

Parça Durumu

Active

Insulation Resistance

1GOhm

Style

Board to Cable/Wire

Pozisyon Sayısı

30

Contact Finish Mating

Gold

Seri

HIF3B

Nominal Gerilim

200V

Row Spacing Mating

0.100 (2.54mm)

Terminal

Solder

Sıra Sayısı

2

Kurşunsuz

Lead Free

Özellikler

Keying Slot, Mounting Flange

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole, Right Angle

Contact Lengthmating

0.236 6.00mm

Connector Type

Header
