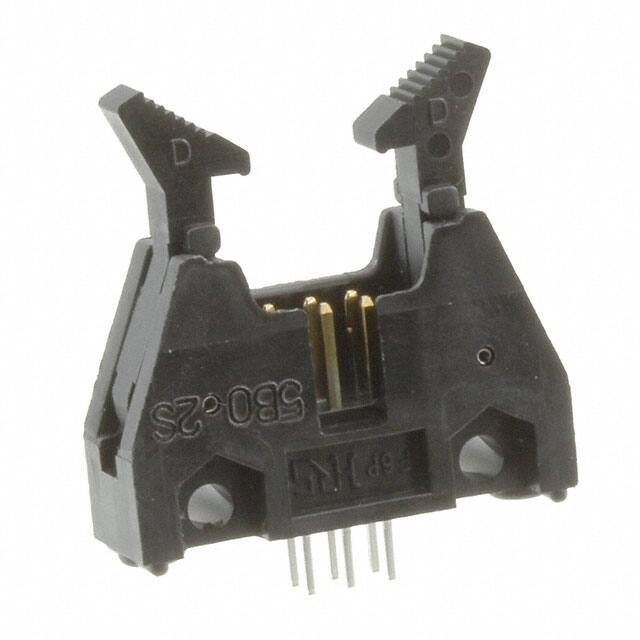

HIF3-6PA-2.54DSA(71)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Straight

Din Conformance

NO

Contact Finish Post

Tin

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Thickness Post

78.7μin 2.00μm

JESD-609 Kodu

e4

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Contact Finish Mating

Gold

Pozisyon Sayısı

6

Mil Conformance

YES

Iec Conformance

NO

Nominal Gerilim

200V

Housing Material

PBT

Akım Değeri

1A

Additional Feature

POLARIZED

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.236 6.00mm

Sıra Sayısı

2

Ul Flammability Code

94V-0

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Number Of Positions Loaded

All

Contact Gender

Male

Insulation Resistance

1GOhm

Total Number Of Contacts

6

Seri

HIF3

Fastening Type

Latch Lock/Eject Hooks

Mixed Contacts

NO

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0
