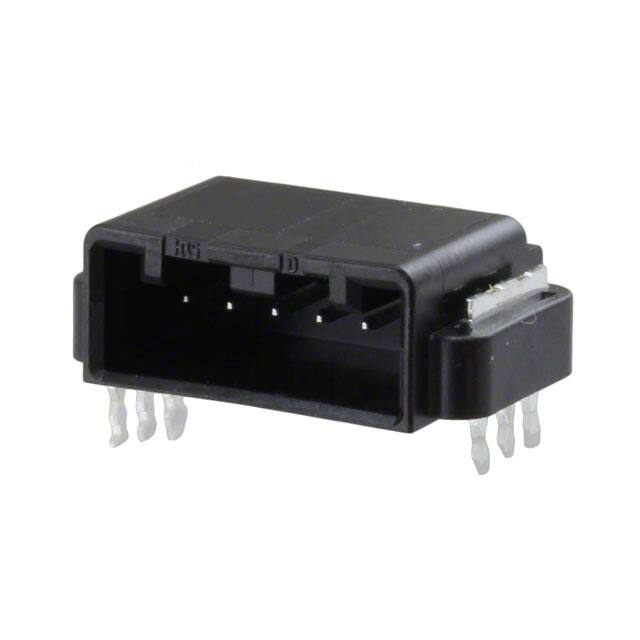

GT8E-6P-2H

Teknik Özellikler

Mating Contact Pitch

0.079 inch

Insulation Height

0.272 6.91mm

Contact Finish Mating

Tin

REACH Uyumluluk Kodu

unknown

Fastening Type

Latch Lock

Number Of Conductors

ONE

Number Of Positions Loaded

All

Reference Standard

UL

Montaj

Surface Mount

Total Number Of Contacts

6

Parça Durumu

Active

Connector Type

Header

Montaj Tipi

Surface Mount, Right Angle

ECCN Kodu

EAR99

Pitch Mating

0.079 2.00mm

Body Length Or Diameter

0.724 inch

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

6

Özellikler

Board Guide

Yayın Yılı

2012

Terminal Adımı

2mm

Style

Board to Cable/Wire

Terminal

Solder

Contact Type

Male Pin

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Seri

GT8E

Insulation Materials

Polyphenylene Sulfide (PPS)

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Operating Temperature Min

-40°C

Number Of Pcb Rows

1

Fabrika Tedarik Süresi

10 Weeks

Contact Shape

Square

Body Breadth

0.275 inch

Sıra Sayısı

1
