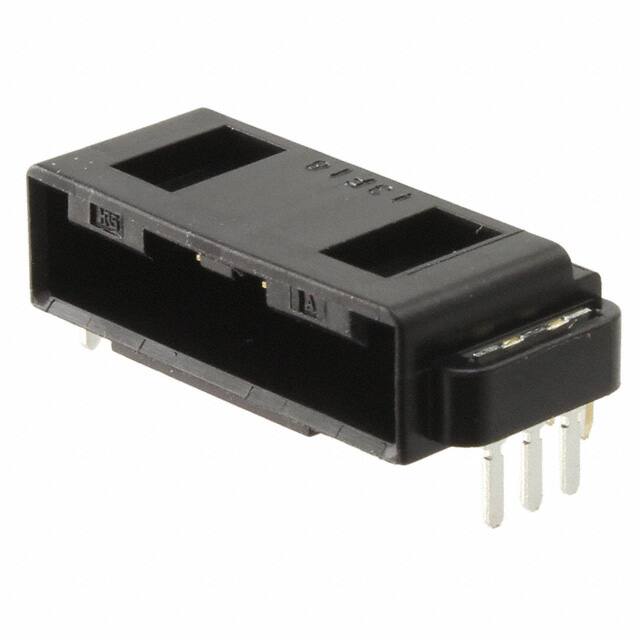

GT8E-10P-DS

Teknik Özellikler

Contact Finish Mating

Tin

Fastening Type

Latch Lock

REACH Uyumluluk Kodu

unknown

Insulation Height

0.276 7.00mm

Filter Feature

NO

Montaj

Through Hole

Contact Length Post

0.118 3.00mm

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Din Conformance

NO

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Connector Type

Header

Option

GENERAL PURPOSE

Yayın Yılı

2014

Özellikler

Board Guide

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

10

Pitch Mating

0.079 2.00mm

ECCN Kodu

EAR99

Contact Type

Male Pin

Style

Board to Cable/Wire

Terminal

Solder

Terminal Adımı

2mm

Iec Conformance

NO

Ambalaj

Tray

Mil Conformance

NO

JESD-609 Kodu

e3

Insulation Materials

Polybutylene Terephthalate (PBT)

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Seri

GT8E

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

1

Contact Shape

Square

Fabrika Tedarik Süresi

10 Weeks

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)
