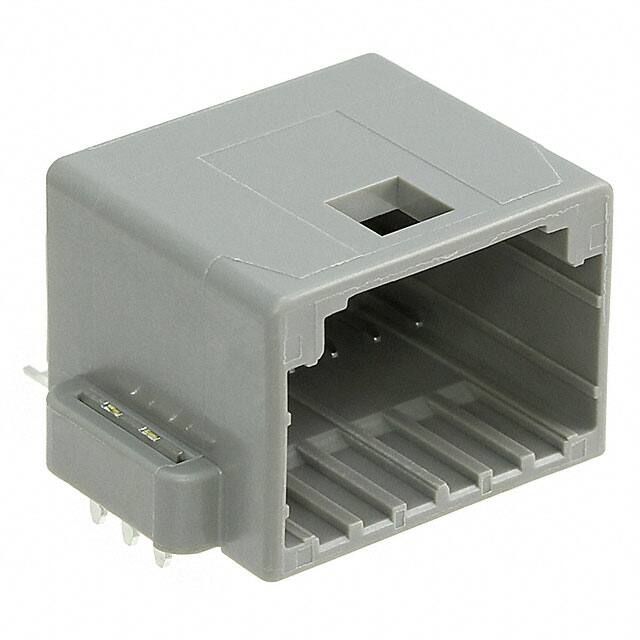

GT25-12DP-2.2H

Teknik Özellikler

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Montaj

Surface Mount

Montaj Tipi

Surface Mount, Right Angle

Renk

Grey

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Number Of Pcb Rows

2

Mating Contact Pitch

0.087 inch

HTS Kodu

8536.69.40.30

JESD-609 Kodu

e3

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Terminal

Solder

Seri

GT25

Current Rating Amps

3A

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tape & Reel (TR)

Insulation Height

0.500 12.70mm

Contact Finish Mating

Tin

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Contact Lengthmating

0.220 5.59mm

Dielectric Withstanding Voltage

650VAC V

Insulation Color

Gray

Pcb Contact Pattern

RECTANGULAR

Contact Shape

Square

Style

Board to Cable/Wire

Row Spacing Mating

0.118 (3.00mm)

Kurşunsuz Kodu

yes

Pitch Mating

0.087 2.20mm

Özellikler

Solder Retention

Number Of Conductors

ONE

Fastening Type

Latch Holder

Contact Type

Male Pin

Din Conformance

NO

Reliability

COMMERCIAL
