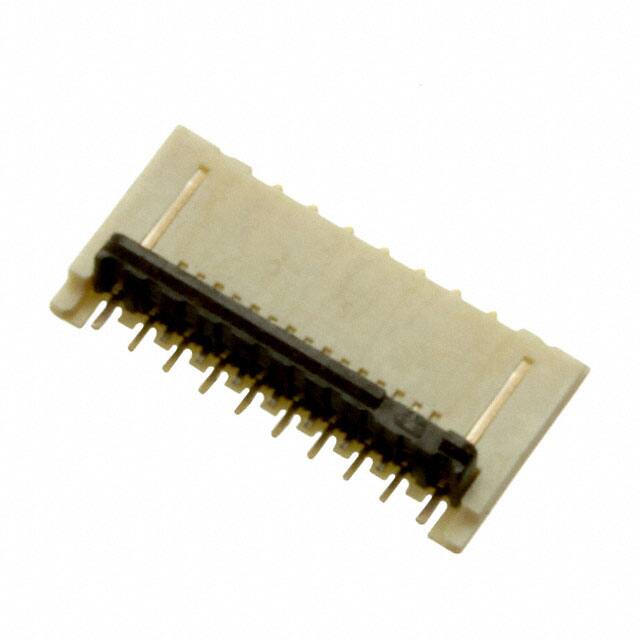

FH64MA-15S-0.25SHW(99)

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Flat Flex Type

FPC

Akım Değeri

200mA

Actuatorcolor

Black

Pitch

0.010 0.25mm

Contact Materials

Phosphor Bronze

Ambalaj

Cut Tape (CT)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Beige

Height Above Board

0.020 0.50mm

Parça Durumu

Active

Seri

FH64MA

Çalışma Sıcaklığı

-55°C~85°C

Nominal Gerilim

30V

Locking Feature

Flip Lock, Backlock

Mating Cycles

10

Terminal

Solder

Contact Finish

Gold

Pozisyon Sayısı

15

Actuator Material

Polyamide (PA), Nylon

Yükseklik

1.2mm

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Cable End Type

Notched

Ffc Fcb Thickness

0.12mm

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.2A
