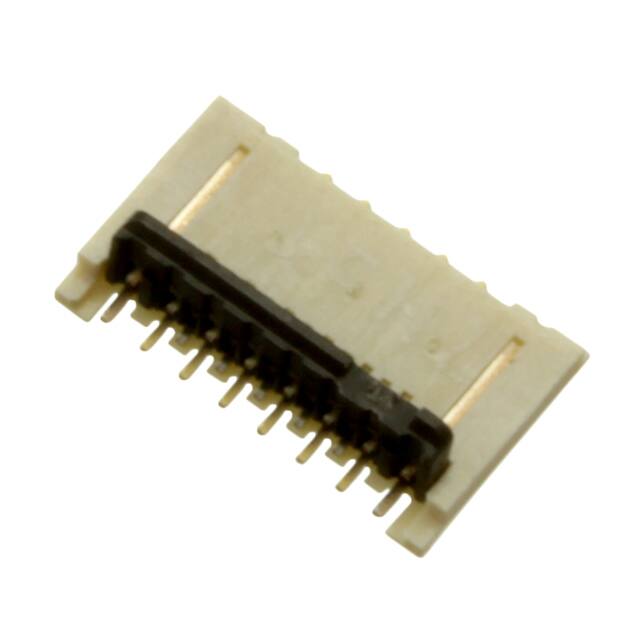

FH64MA-11S-0.25SHW(99)

Teknik Özellikler

Seri

FH64MA

Nominal Gerilim

30V

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Height Above Board

0.020 0.50mm

Housing Color

Beige

Ambalaj

Cut Tape (CT)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.010 0.25mm

Contact Materials

Phosphor Bronze

Akım Değeri

200mA

Actuatorcolor

Black

Flat Flex Type

FPC

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

RoHS Durumu

RoHS Compliant

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.2A

Cable End Type

Notched

Ffc Fcb Thickness

0.12mm

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Manufacturer Package Identifier

FH64MA-11S-0.25SHW(99)

Montaj Tipi

Surface Mount, Right Angle

Yükseklik

1.2mm

Actuator Material

Polyamide (PA), Nylon

Pozisyon Sayısı

11

Contact Finish

Gold

Terminal

Solder

Mating Cycles

10

Locking Feature

Flip Lock, Backlock
