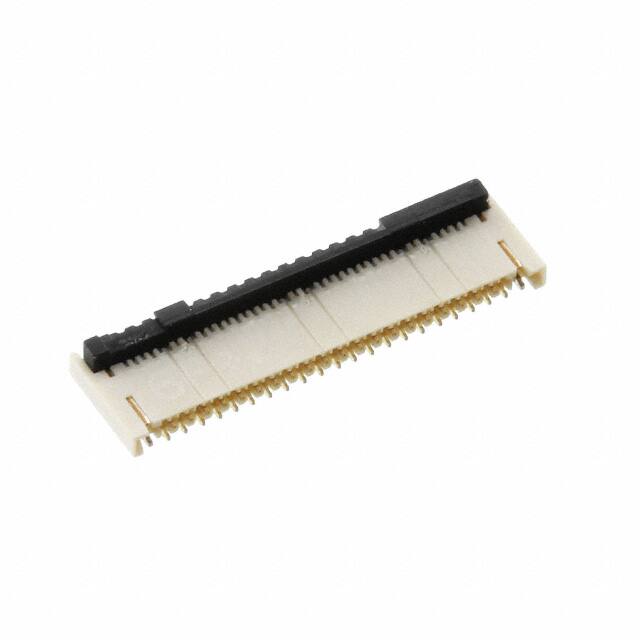

FH53-41S-0.2SHW(99)

Teknik Özellikler

Material Flammability Rating

UL94 V-0, UL94 HB

Mounting Option1

LOCKING

Montaj Tipi

Surface Mount, Right Angle

Total Number Of Contacts

41

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

50000000Ohm

REACH Uyumluluk Kodu

unknown

Additional Feature

500 PER REEL

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.2A

Body Length Or Diameter

0.386 inch

Gender

Receptacle

Ffc Fcb Thickness

0.12mm

HTS Kodu

8536.69.40.40

Cable End Type

Notched

Mating Cycles

10

Reference Standard

UL

Locking Feature

Flip Lock, Backlock

Number Of Pcb Rows

2

Terminal

Solder

ECCN Kodu

EAR99

Pozisyon Sayısı

41

Contact Finish

Gold

Body Breadth

0.026 inch

Actuator Material

Polyamide (PA), Nylon, Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Dielectric Withstanding Voltage

120VAC V

Height Above Board

0.026 0.65mm

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~85°C

Pcb Contact Row Spacing

2.4892 mm

Seri

FH53

Parça Durumu

Active

Kurşunsuz

Lead Free

Contact Style

BELLOWED TYPE

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1
