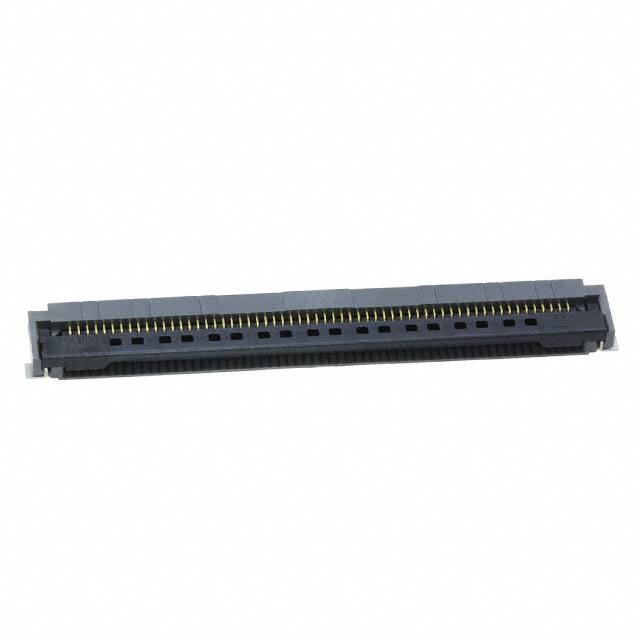

FH52E-60S-0.5SH(99)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.5A

Ul Flammability Code

94V-0

Gender

Receptacle

Ffc Fcb Thickness

0.30mm

Cable End Type

Tabbed

Connector Type

FFC/FPC CONNECTOR

Montaj

Surface Mount

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Total Number Of Contacts

60

Iec Conformance

NO

Mil Conformance

NO

Pozisyon Sayısı

60

Contact Finish

Gold

Option

GENERAL PURPOSE

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Mating Cycles

20

Locking Feature

Flip Lock

Flammability Rating

UL94 V-0

Filter Feature

NO

Terminal

Solder

Mixed Contacts

NO

Çalışma Sıcaklığı

-40°C~105°C

Nominal Gerilim

50V

Seri

FH52E

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Ambalaj

Tape & Reel (TR)

Height Above Board

0.079 2.00mm

Housing Color

Gray

Actuatorcolor

Black

Akım Değeri

500mA

JESD-609 Kodu

e4

Flat Flex Type

FFC, FPC

Contact Materials

Phosphor Bronze

Pitch

0.020 0.50mm
