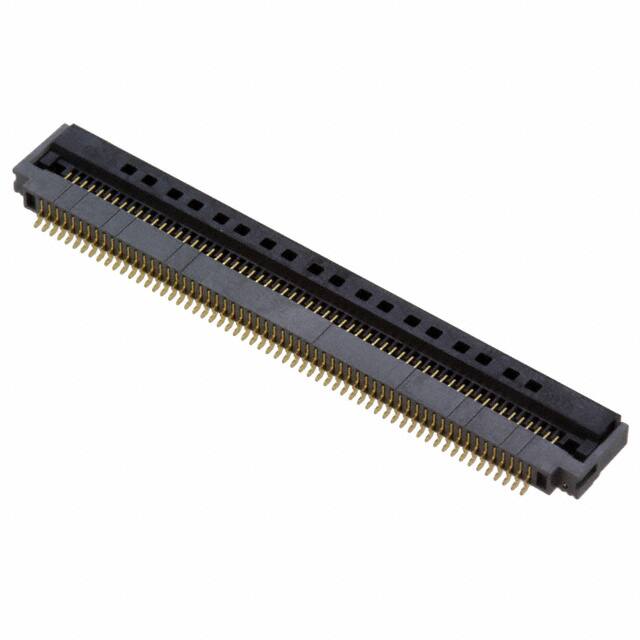

FH52-60S-0.5SH

Teknik Özellikler

Orientation

Right Angle

Ul Flammability Code

94V-0

Current Rating Amps

0.5A

Contact Finish Thickness

1.18μin 0.030μm

Connector Type

FFC/FPC CONNECTOR

Cable End Type

Tabbed

Ffc Fcb Thickness

0.30mm

Material Flammability Rating

UL94 V-0

Montaj

Surface Mount

Montaj Tipi

Surface Mount, Right Angle

Mil Conformance

NO

Total Number Of Contacts

60

Iec Conformance

NO

Pozisyon Sayısı

60

Contact Finish

Gold

Option

GENERAL PURPOSE

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Mating Cycles

20

Locking Feature

Flip Lock

Flammability Rating

UL94 V-0

Terminal

Solder

Filter Feature

NO

Contact Location

Bottom

Mixed Contacts

NO

ECCN Kodu

EAR99

Seri

FH52

Çalışma Sıcaklığı

-40°C~105°C

Parça Durumu

Active

Contact Gender

FEMALE

Din Conformance

NO

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Height Above Board

0.079 2.00mm

Housing Color

Gray

Akım Değeri

500mA

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

JESD-609 Kodu

e4

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze
