Adet bazlı fiyat
- 1+ adet$4.91
- 10+ adet$4.64
- 100+ adet$4.37
- 500+ adet$4.13
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

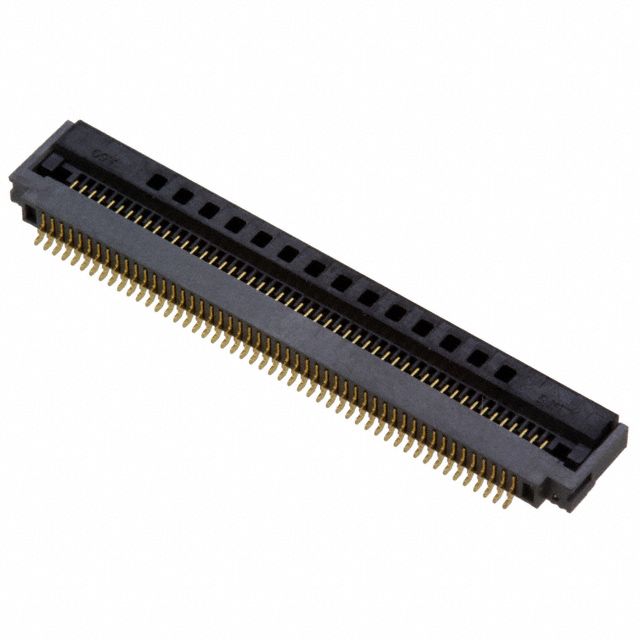

Teknik Özellikler
- Height Above Board
- 0.079 2.00mm
- Body Depth
- 0.224 inch
- Reliability
- COMMERCIAL
- Pcb Contact Pattern
- RECTANGULAR
- Housing Color
- Gray
- Ambalaj
- Cut Tape (CT)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Style
- BELLOWED TYPE
- Kurşunsuz
- Lead Free
- Seri
- FH52
- Çalışma Sıcaklığı
- -40°C~105°C
- Parça Durumu
- Active
- Housing Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Sıra Sayısı
- 1
- RoHS Durumu
- RoHS Compliant
- Pitch
- 0.020 0.50mm
- Contact Pattern
- RECTANGULAR
- Contact Materials
- Phosphor Bronze
- Akım Değeri
- 500mA
- Actuatorcolor
- Black
- Flat Flex Type
- FFC, FPC
- Total Number Of Contacts
- 50
- Material Flammability Rating
- UL94 V-0
- Montaj
- Surface Mount
- Montaj Tipi
- Surface Mount, Right Angle
- Current Rating Amps
- 0.5A
- Contact Finish Thickness
- 1.18μin 0.030μm
- HTS Kodu
- 8536.69.40.40
- Cable End Type
- Tabbed
- Connector Type
- FFC/FPC CONNECTOR
- Gender
- Receptacle
- Ffc Fcb Thickness
- 0.30mm
- REACH Uyumluluk Kodu
- unknown
- Terminal
- Solder
- Number Of Pcb Rows
- 1
- Contact Location
- Bottom
- ECCN Kodu
- EAR99
- Reference Standard
- UL
- Mating Cycles
- 20
- Locking Feature
- Flip Lock
