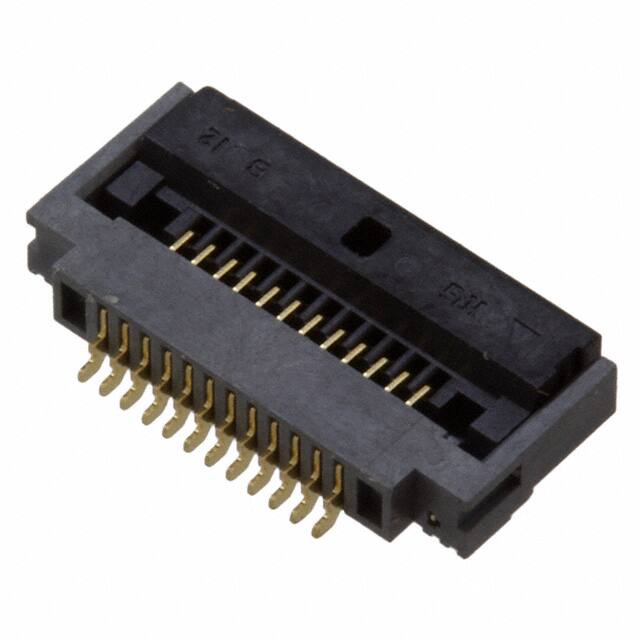

FH52-12S-0.5SH

Teknik Özellikler

Contact Gender

FEMALE

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

Seri

FH52

Housing Color

Gray

Height Above Board

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Contact Materials

Phosphor Bronze

Pitch

0.020 0.50mm

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

Akım Değeri

500mA

Sıra Sayısı

1

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

RoHS Durumu

RoHS Compliant

Ffc Fcb Thickness

0.30mm

HTS Kodu

8536.69.40.51

Cable End Type

Tabbed

Connector Type

FFC/FPC CONNECTOR

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.5A

Ul Flammability Code

94V-0

REACH Uyumluluk Kodu

unknown

Total Number Of Contacts

12

Iec Conformance

NO

Mil Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Option

GENERAL PURPOSE

Contact Finish

Gold

Pozisyon Sayısı

12

ECCN Kodu

EAR99

Mixed Contacts

NO

Contact Location

Bottom

Filter Feature

NO

Terminal

Solder
