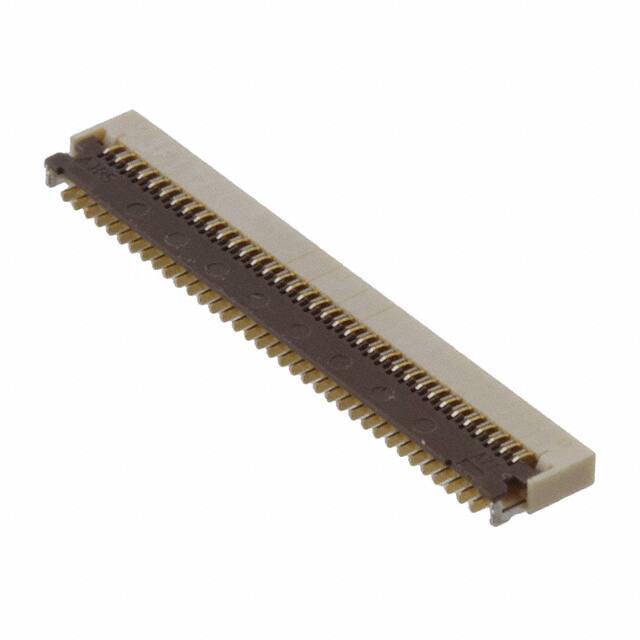

FH43B-71S-0.2SHW(99)

Teknik Özellikler

Reference Standard

UL

Mating Cycles

10

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Number Of Pcb Rows

2

Terminal

Solder

ECCN Kodu

EAR99

Pozisyon Sayısı

71

Body Breadth

0.035 inch

Actuator Material

Polyamide (PA), Nylon

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Current Rating Amps

0.2A

Ffc Fcb Thickness

0.20mm

Cable End Type

Tabbed

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Insulator Color

BROWN

Akım Değeri

200mA

Flat Flex Type

FPC

Pitch

0.008 0.20mm

Contact Pattern

RECTANGULAR

Insertion Forcemax

ZIF N

Ambalaj

Digi-Reel®

Height Above Board

0.035 0.88mm

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.413 mm

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Contact Finish

Gold

Montaj

Surface Mount

Total Number Of Contacts

71

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Insulation Resistance

50000000Ohm

Body Length Or Diameter

0.622 inch

Gender

Female

HTS Kodu

8536.69.40.40

Connector Type

BOARD CONNECTOR

Sıra Sayısı

1
