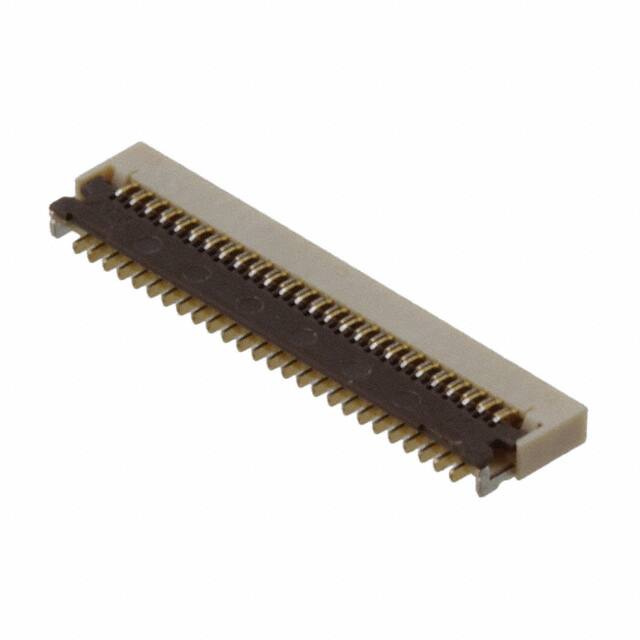

FH43B-51S-0.2SHW(99)

Teknik Özellikler

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

51

Montaj

Surface Mount

Gender

Female

Connector Type

BOARD CONNECTOR

HTS Kodu

8536.69.40.40

Body Length Or Diameter

0.465 inch

REACH Uyumluluk Kodu

unknown

Insulation Resistance

50000000Ohm

Sıra Sayısı

1

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Actuatorcolor

Black

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Reliability

COMMERCIAL

Body Depth

0.112 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

90VAC V

Contact Style

BELLOWED TYPE

Seri

FH43B

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Terminal

Solder

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Reference Standard

UL

Mating Cycles

10

Actuator Material

Polyamide (PA), Nylon

Body Breadth

0.035 inch

Pozisyon Sayısı

51

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Ffc Fcb Thickness

0.20mm

Cable End Type

Tabbed

Current Rating Amps

0.2A

Insulator Color

BROWN

Housing Material

Liquid Crystal Polymer (LCP)

RoHS Durumu

RoHS Compliant
