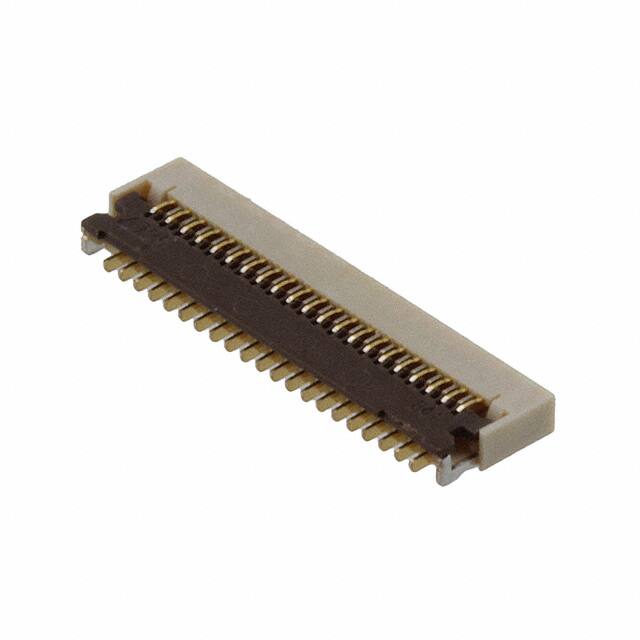

FH43B-41S-0.2SHW(99)

Teknik Özellikler

Insertion Forcemax

ZIF N

Pitch

0.008 0.20mm

Contact Pattern

RECTANGULAR

Flat Flex Type

FPC

Akım Değeri

200mA

Insulator Color

BROWN

Housing Material

Liquid Crystal Polymer (LCP)

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Nominal Gerilim

30V

Height Above Board

0.035 0.88mm

Ambalaj

Cut Tape (CT)

Actuator Material

Polyamide (PA), Nylon

Body Breadth

0.035 inch

Pozisyon Sayısı

41

ECCN Kodu

EAR99

Terminal

Solder

Number Of Pcb Rows

2

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Reference Standard

UL

Mating Cycles

10

Cable End Type

Tabbed

Ffc Fcb Thickness

0.20mm

Current Rating Amps

0.2A

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Actuatorcolor

Black

Sıra Sayısı

1

Contact Style

BELLOWED TYPE

Seri

FH43B

Reliability

COMMERCIAL

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Body Depth

0.112 inch

Dielectric Withstanding Voltage

90VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)
