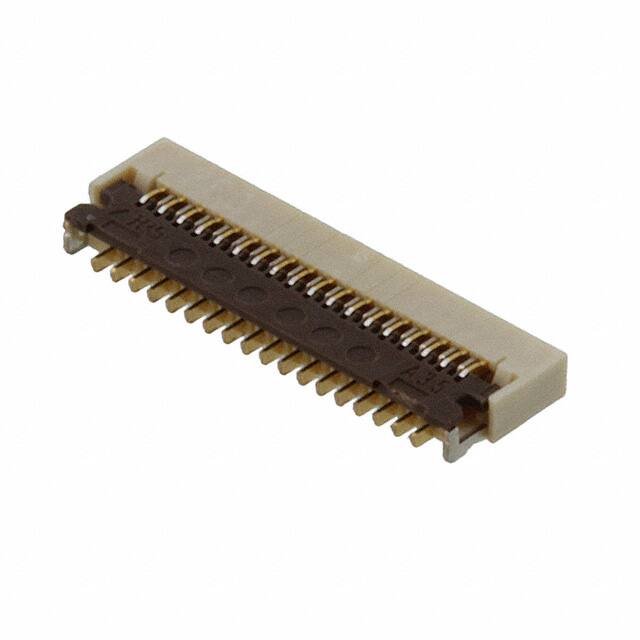

FH43B-35S-0.2SHW(99)

Teknik Özellikler

Total Number Of Contacts

35

Montaj

Surface Mount

Connector Type

BOARD CONNECTOR

HTS Kodu

8536.69.40.40

Gender

Female

Body Length Or Diameter

0.339 inch

Insulation Resistance

50000000Ohm

REACH Uyumluluk Kodu

unknown

Contact Finish

Gold

Reliability

COMMERCIAL

Pcb Contact Pattern

STAGGERED

Housing Color

Beige

Body Depth

0.112 inch

Dielectric Withstanding Voltage

90VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

BELLOWED TYPE

Seri

FH43B

Sıra Sayısı

1

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Cable End Type

Tabbed

Ffc Fcb Thickness

0.20mm

Current Rating Amps

0.2A

ECCN Kodu

EAR99

Terminal

Solder

Number Of Pcb Rows

2

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Reference Standard

UL

Mating Cycles

10

Actuator Material

Polyamide (PA), Nylon

Pozisyon Sayısı

35

Height Above Board

0.035 0.88mm

Ambalaj

Cut Tape (CT)

Parça Durumu

Discontinued

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.413 mm
