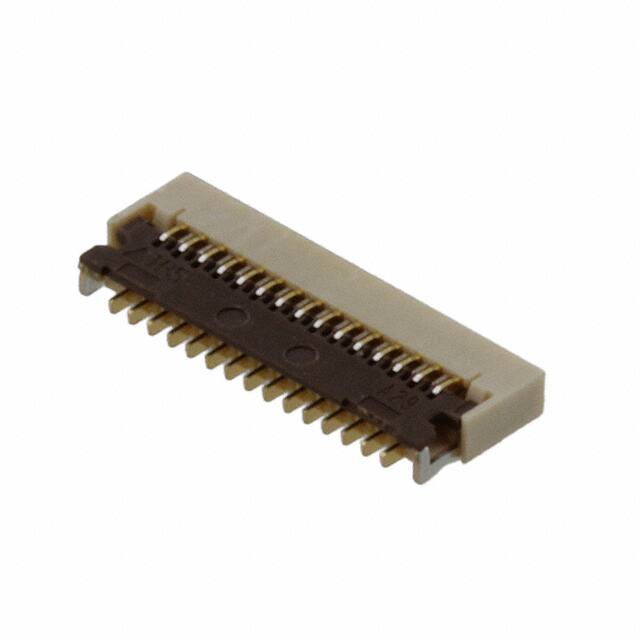

FH43B-29S-0.2SHW(99)

Teknik Özellikler

Insertion Forcemax

ZIF N

Pitch

0.008 0.20mm

Contact Pattern

RECTANGULAR

Flat Flex Type

FPC

Akım Değeri

200mA

Insulator Color

BROWN

Housing Material

Liquid Crystal Polymer (LCP)

RoHS Durumu

RoHS Compliant

Parça Durumu

Discontinued

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.413 mm

Çalışma Sıcaklığı

-55°C~85°C

Height Above Board

0.035 0.88mm

Ambalaj

Cut Tape (CT)

Body Breadth

0.035 inch

Actuator Material

Polyamide (PA), Nylon

Pozisyon Sayısı

29

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Terminal

Solder

Locking Feature

Flip Lock

Flammability Rating

UL94 V-0

Mating Cycles

10

Reference Standard

UL

Ffc Fcb Thickness

0.20mm

Cable End Type

Tabbed

Current Rating Amps

0.2A

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Actuatorcolor

Black

Sıra Sayısı

1

Contact Style

BELLOWED TYPE

Seri

FH43B

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Reliability

COMMERCIAL

Body Depth

0.112 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)
