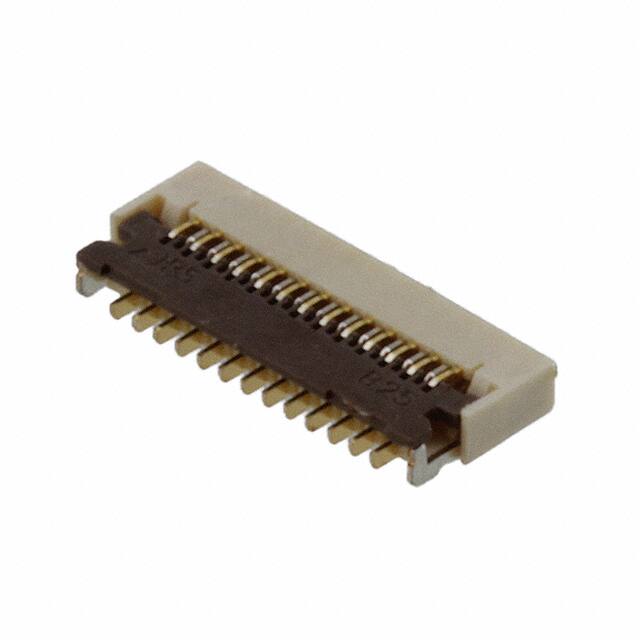

FH43B-25S-0.2SHW(99)

Teknik Özellikler

Pozisyon Sayısı

25

Actuator Material

Polyamide (PA), Nylon

Body Breadth

0.035 inch

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Reference Standard

UL

Mating Cycles

10

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Terminal

Solder

Ffc Fcb Thickness

0.20mm

Cable End Type

Tabbed

Current Rating Amps

0.2A

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Flat Flex Type

FPC

Akım Değeri

200mA

Insertion Forcemax

ZIF N

Contact Pattern

RECTANGULAR

Pitch

0.008 0.20mm

RoHS Durumu

RoHS Compliant

Insulator Color

BROWN

Housing Material

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.413 mm

Çalışma Sıcaklığı

-55°C~85°C

Ambalaj

Digi-Reel®

Height Above Board

0.035 0.88mm

Contact Finish

Gold

Insulation Resistance

50000000Ohm

REACH Uyumluluk Kodu

unknown

Gender

Female

HTS Kodu

8536.69.40.40

Connector Type

BOARD CONNECTOR

Body Length Or Diameter

0.26 inch

Montaj

Surface Mount

Total Number Of Contacts

25

Fabrika Tedarik Süresi

10 Weeks

Actuatorcolor

Black
