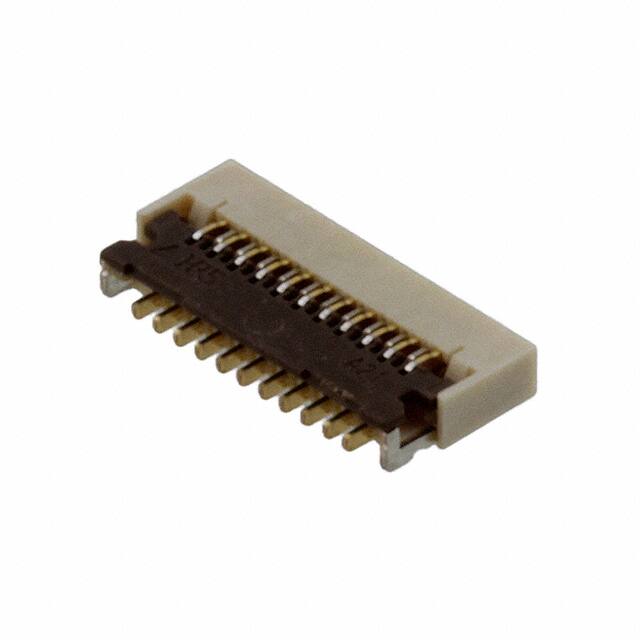

FH43B-21S-0.2SHW(99)

Teknik Özellikler

Dielectric Withstanding Voltage

90VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Depth

0.112 inch

Reliability

COMMERCIAL

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Seri

FH43B

Contact Style

BELLOWED TYPE

Sıra Sayısı

1

Actuatorcolor

Black

Contact Materials

Phosphor Bronze

Özellikler

Zero Insertion Force (ZIF)

Montaj

Surface Mount

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

21

REACH Uyumluluk Kodu

unknown

Insulation Resistance

50000000Ohm

Body Length Or Diameter

0.228 inch

HTS Kodu

8536.69.40.40

Connector Type

BOARD CONNECTOR

Gender

Female

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Height Above Board

0.035 0.88mm

Çalışma Sıcaklığı

-55°C~85°C

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.413 mm

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Insulator Color

BROWN

Akım Değeri

200mA

Flat Flex Type

FPC

Pitch

0.008 0.20mm

Contact Pattern

RECTANGULAR

Insertion Forcemax

ZIF N

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Current Rating Amps

0.2A

Cable End Type

Tabbed
