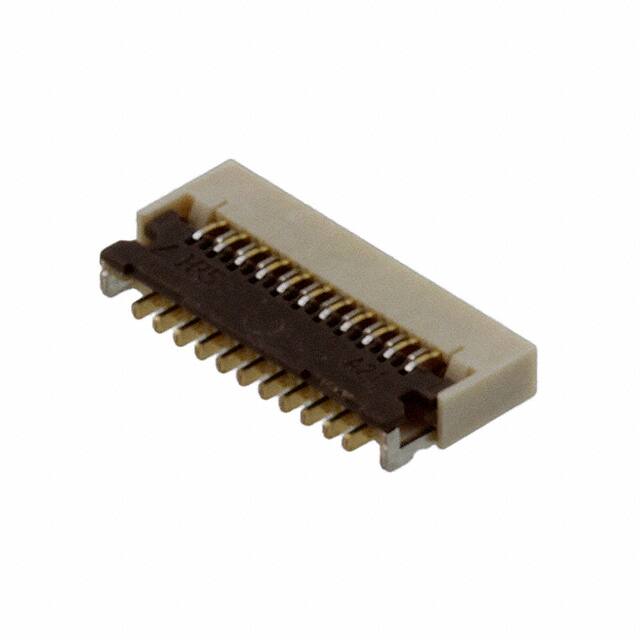

FH43B-21S-0.2SHW(10)

Teknik Özellikler

Ul Flammability Code

94V-0

HTS Kodu

8536.69.40.51

Insulation Resistance

50MOhm

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Total Number Of Contacts

21

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Montaj

Surface Mount

Option

GENERAL PURPOSE

Contact Finish

Gold

Mixed Contacts

NO

Contact Gender

FEMALE

Seri

FH43B

Reliability

COMMERCIAL

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Din Conformance

NO

Dielectric Withstanding Voltage

90VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Özellikler

Zero Insertion Force (ZIF)

Actuatorcolor

Black

JESD-609 Kodu

e4

Sıra Sayısı

1

Current Rating Amps

0.2A

Cable End Type

Tabbed

Ffc Fcb Thickness

0.20mm

Additional Feature

LOW PROFILE

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Actuator Material

Polyamide (PA), Nylon

Pozisyon Sayısı

21

Number Of Conductors

ONE

Bodyshell Style

RECEPTACLE

Terminal

Solder

Number Of Pcb Rows

2

Filter Feature

NO

ECCN Kodu

EAR99

Mating Cycles

10
