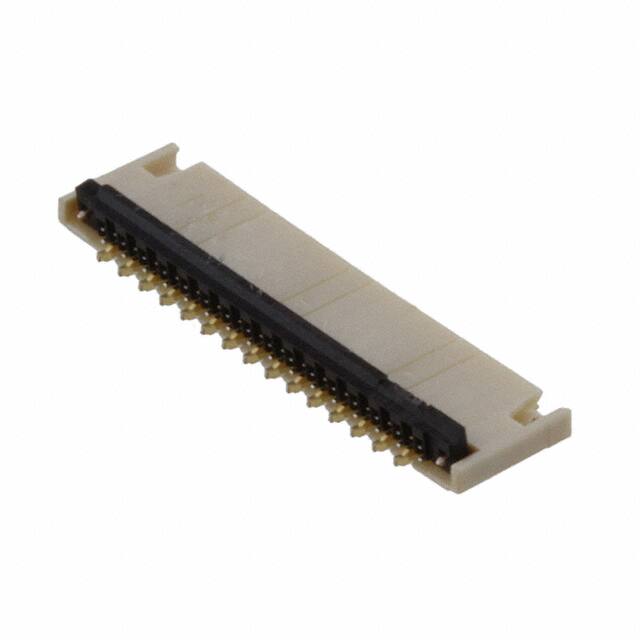

FH42-31S-0.3SHW(10)

Teknik Özellikler

Additional Feature

LOW PROFILE

Current Rating Amps

0.2A

Contact Finish Thickness

1.18μin 0.030μm

Cable End Type

Notched

Ffc Fcb Thickness

0.12mm

Material Flammability Rating

UL94 V-0, UL94 HB

Montaj Tipi

Surface Mount, Right Angle

Pozisyon Sayısı

31

Actuator Material

Polyamide (PA), Nylon

Reference Standard

UL

Mating Cycles

10

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock, Backlock

Terminal

Solder

Filter Feature

NO

Number Of Pcb Rows

2

Contact Location

Top

Çalışma Sıcaklığı

-55°C~85°C

Pcb Contact Row Spacing

2.7178 mm

Nominal Gerilim

30V

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Height Above Board

0.026 0.65mm

Akım Değeri

200mA

Flat Flex Type

FPC

Contact Pattern

RECTANGULAR

Pitch

0.012 0.30mm

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

REACH Uyumluluk Kodu

unknown

Insulation Resistance

50MOhm

Ul Flammability Code

94-HB, 94V-0

Kurşunsuz Kodu

yes

Montaj

Surface Mount

Mil Conformance

NO

Total Number Of Contacts

31

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Contact Finish

Gold

Option

GENERAL PURPOSE
