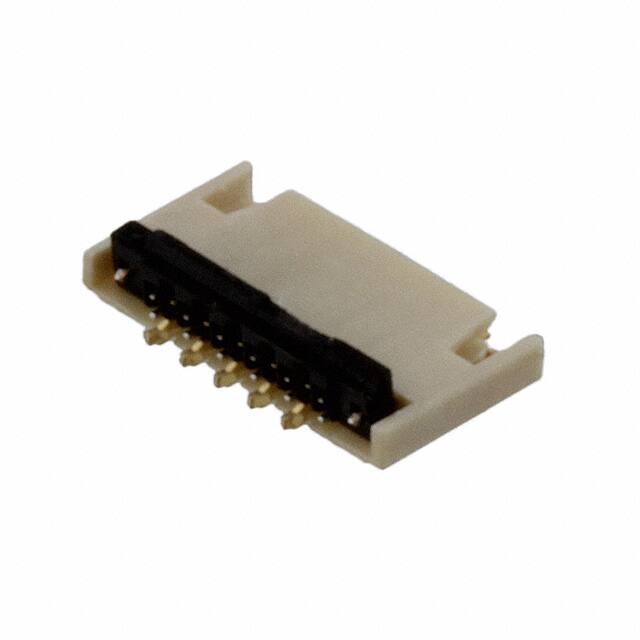

FH42-11S-0.3SHW(10)

Teknik Özellikler

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Contact Pattern

RECTANGULAR

Pitch

0.012 0.30mm

Flat Flex Type

FPC

Actuatorcolor

Black

Akım Değeri

200mA

Contact Resistance

200mOhm

Sıra Sayısı

1

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

RoHS Durumu

RoHS Compliant

Contact Style

BELLOWED TYPE

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Pcb Contact Row Spacing

2.7178 mm

Nominal Gerilim

30V

Seri

FH42

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Reliability

COMMERCIAL

Height Above Board

0.026 0.65mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Dielectric Withstanding Voltage

120VAC V

Actuator Material

Polyamide (PA), Nylon

Contact Finish

Gold

Pozisyon Sayısı

11

ECCN Kodu

EAR99

Contact Location

Top

Number Of Pcb Rows

2

Terminal

Solder

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock, Backlock

Mating Cycles

10

Reference Standard

UL

Ffc Fcb Thickness

0.12mm

HTS Kodu

8536.69.40.51

Cable End Type

Notched

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.2A
