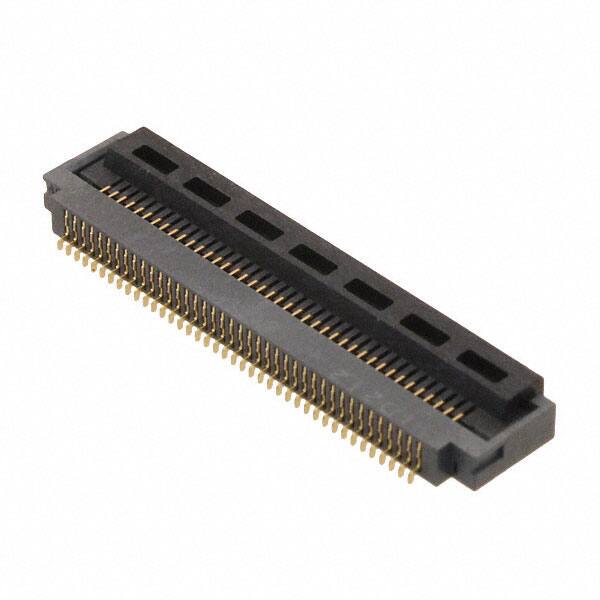

FH41-40S-0.5SH(05)

Teknik Özellikler

Body Breadth

0.098 inch

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Pozisyon Sayısı

40

Number Of Pcb Rows

1

Filter Feature

NO

Terminal

Solder

Locking Feature

Flip Lock, Backlock

Flammability Rating

UL94 V-0

Mating Cycles

20

Reference Standard

UL

Ffc Fcb Thickness

0.30mm

Cable End Type

Tabbed

Contact Finish Thickness

1.18μin 0.030μm

Current Rating Amps

0.5A

Additional Feature

SHIELDED

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Flat Flex Type

FFC

Akım Değeri

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Nominal Gerilim

50V

Çalışma Sıcaklığı

-40°C~105°C

Height Above Board

0.098 2.50mm

Ambalaj

Tape & Reel (TR)

Option

GENERAL PURPOSE

Wirecable Type

Flat Flex

Contact Finish

Gold

Reach Svhc

No SVHC

Mixed Contacts

NO

Gender

Receptacle

Body Length Or Diameter

0.945 inch

Orientation

Right Angle

Ul Flammability Code

94V-0

Insulation Resistance

500000000Ohm

REACH Uyumluluk Kodu

unknown

Iec Conformance

NO
