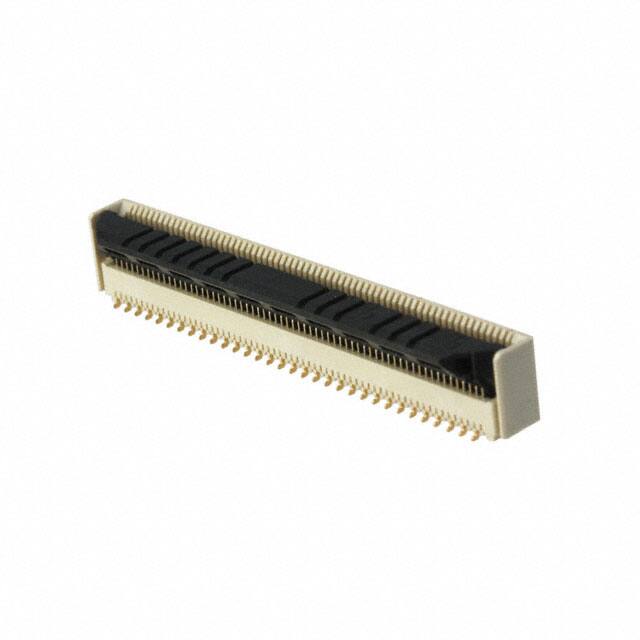

FH40-64S-0.5SV

Teknik Özellikler

Din Conformance

NO

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Beige

Height Above Board

0.228 5.80mm

Parça Durumu

Active

Seri

FH40

Nominal Gerilim

50V

Çalışma Sıcaklığı

-40°C~105°C

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Sıra Sayısı

1

Flat Flex Type

FPC

JESD-609 Kodu

e3

Actuatorcolor

Black

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Montaj Tipi

Surface Mount

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Mil Conformance

NO

Total Number Of Contacts

64

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

REACH Uyumluluk Kodu

unknown

HTS Kodu

8536.69.40.51

Cable End Type

Tabbed

Gender

Receptacle

Ffc Fcb Thickness

0.30mm

Ul Flammability Code

94V-0

Current Rating Amps

0.5A

Contact Finish Thickness

2.00μin 0.051μm

Locking Feature

Flip Lock

Mating Cycles

20

Mixed Contacts

NO

ECCN Kodu

EAR99

Terminal

Solder

Filter Feature

NO

Contact Finish

Gold

Pozisyon Sayısı

64
