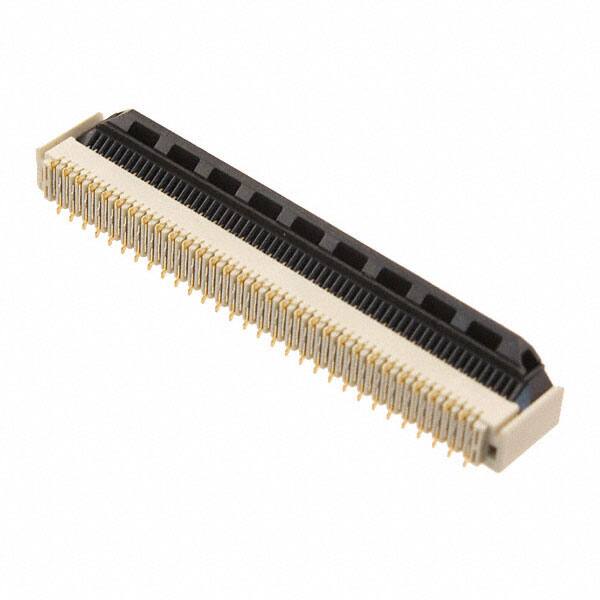

FH40-60S-0.5SV

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1

Housing Material

Liquid Crystal Polymer (LCP)

Actuatorcolor

Black

JESD-609 Kodu

e3

Flat Flex Type

FPC

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Din Conformance

NO

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Height Above Board

0.228 5.80mm

Housing Color

Beige

Seri

FH40

Çalışma Sıcaklığı

-40°C~105°C

Nominal Gerilim

50V

Parça Durumu

Active

Mating Cycles

20

Locking Feature

Flip Lock

Terminal

Solder

Filter Feature

NO

Mixed Contacts

NO

ECCN Kodu

EAR99

Pozisyon Sayısı

60

Contact Finish

Gold

Option

GENERAL PURPOSE

Actuator Material

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Montaj Tipi

Surface Mount

Mil Conformance

NO

Total Number Of Contacts

60

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

REACH Uyumluluk Kodu

unknown

Ul Flammability Code

94V-0

Contact Finish Thickness

2.00μin 0.051μm

Current Rating Amps

0.5A

HTS Kodu

8536.69.40.51

Cable End Type

Tabbed
