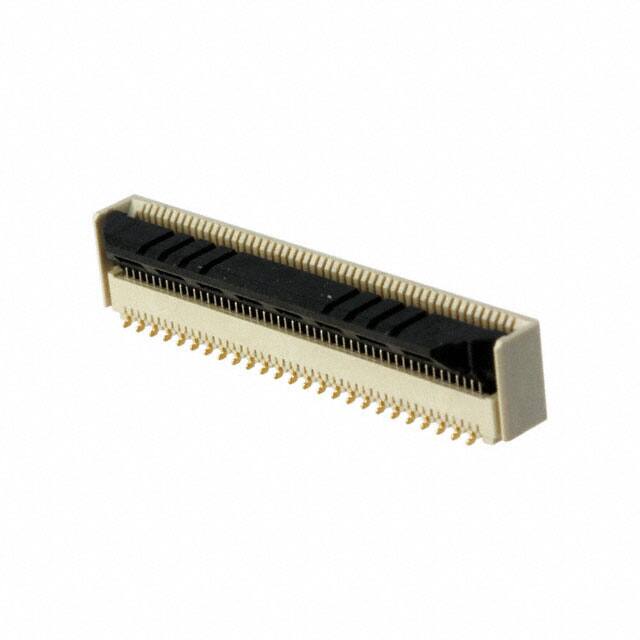

FH40-50S-0.5SV

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Mounting Option1

LOCKING

Montaj Tipi

Surface Mount

Current Rating Amps

0.5A

Contact Finish Thickness

2.00μin 0.051μm

Ffc Fcb Thickness

0.30mm

Cable End Type

Tabbed

Reference Standard

UL

Mating Cycles

20

Locking Feature

Flip Lock

Filter Feature

NO

Number Of Pcb Rows

2

Terminal

Solder

Pozisyon Sayısı

50

Body Breadth

0.183 inch

Actuator Material

Liquid Crystal Polymer (LCP)

Ambalaj

Tape & Reel (TR)

Height Above Board

0.228 5.80mm

Nominal Gerilim

50V

Pcb Contact Row Spacing

3.048 mm

Çalışma Sıcaklığı

-40°C~105°C

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Flat Flex Type

FPC

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Kurşunsuz Kodu

yes

Total Number Of Contacts

50

Fabrika Tedarik Süresi

12 Weeks

Iec Conformance

NO

Mil Conformance

NO

Body Length Or Diameter

1.11 inch

Ul Flammability Code

94V-0

Gender

Receptacle

Mixed Contacts

NO

Contact Finish

Gold

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO
