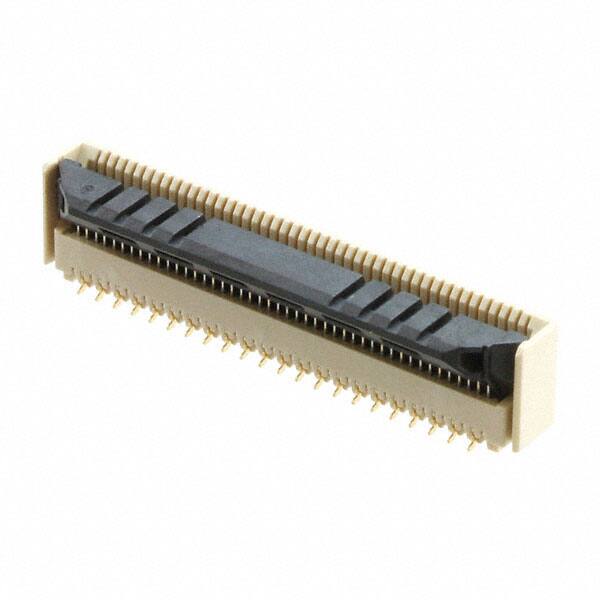

FH40-45S-0.5SV

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Flat Flex Type

FPC

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Ambalaj

Tape & Reel (TR)

Height Above Board

0.228 5.80mm

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

Pcb Contact Row Spacing

3.05 mm

Nominal Gerilim

50V

Locking Feature

Flip Lock

Mating Cycles

20

Reference Standard

UL

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Filter Feature

NO

Terminal

Solder

Number Of Conductors

ONE

Pozisyon Sayısı

45

Body Breadth

0.183 inch

Actuator Material

Liquid Crystal Polymer (LCP)

Montaj Tipi

Surface Mount

Material Flammability Rating

UL94 V-0

Mounting Option1

LOCKING

Ffc Fcb Thickness

0.30mm

Cable End Type

Tabbed

Current Rating Amps

0.5A

Contact Finish Thickness

2.00μin 0.051μm

Sıra Sayısı

1

JESD-609 Kodu

e4

Actuatorcolor

Black

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Body Depth

0.228 inch

Seri

FH40

Mixed Contacts

NO

Contact Finish

Gold
