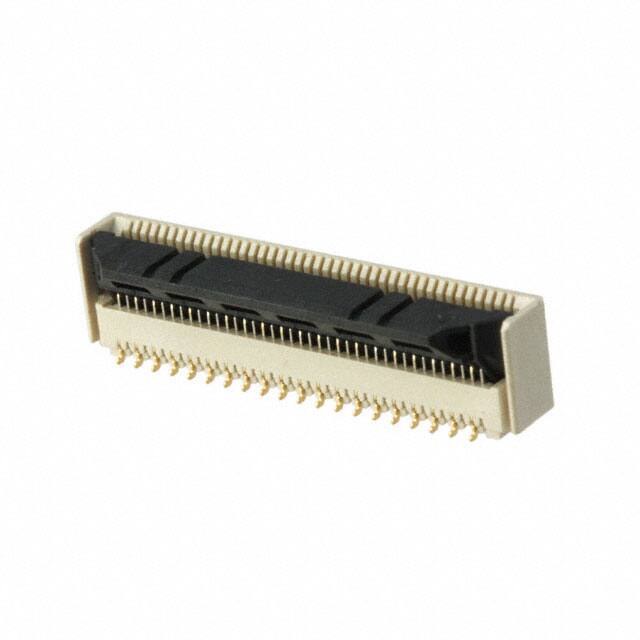

FH40-40S-0.5SV

Teknik Özellikler

Actuatorcolor

Black

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Sıra Sayısı

1

Seri

FH40

Contact Style

BELLOWED TYPE

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Depth

0.228 inch

Reliability

COMMERCIAL

Pcb Contact Pattern

STAGGERED

Housing Color

Beige

Contact Finish

Gold

Option

GENERAL PURPOSE

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Ul Flammability Code

94V-0

Body Length Or Diameter

0.913 inch

Gender

Receptacle

Kurşunsuz Kodu

yes

Mil Conformance

NO

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

40

Flat Flex Type

FPC

Pitch

0.020 0.50mm

Contact Pattern

RECTANGULAR

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Pcb Contact Row Spacing

3.048 mm

Nominal Gerilim

50V

Çalışma Sıcaklığı

-40°C~105°C

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Height Above Board

0.228 5.80mm

Pozisyon Sayısı

40

Body Breadth

0.183 inch

Actuator Material

Liquid Crystal Polymer (LCP)

Mating Cycles

20

Reference Standard

UL
