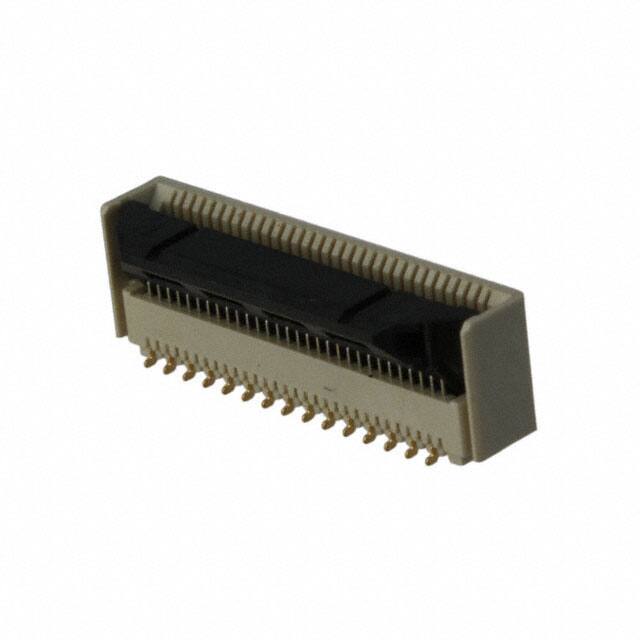

FH40-30S-0.5SV

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Height Above Board

0.228 5.80mm

Çalışma Sıcaklığı

-40°C~105°C

Pcb Contact Row Spacing

3.048 mm

Nominal Gerilim

50V

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Flat Flex Type

FPC

Pitch

0.020 0.50mm

Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Mounting Option1

LOCKING

Montaj Tipi

Surface Mount

Current Rating Amps

0.5A

Contact Finish Thickness

2.00μin 0.051μm

Ffc Fcb Thickness

0.30mm

Cable End Type

Tabbed

Mating Cycles

20

Reference Standard

UL

Locking Feature

Flip Lock

Number Of Pcb Rows

2

Filter Feature

NO

Terminal

Solder

Pozisyon Sayısı

30

Actuator Material

Liquid Crystal Polymer (LCP)

Body Breadth

0.139 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Body Depth

0.228 inch

Housing Color

Beige

Pcb Contact Pattern

STAGGERED

Reliability

COMMERCIAL

Seri

FH40

Contact Style

BELLOWED TYPE

Sıra Sayısı

1

Actuatorcolor

Black

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Kurşunsuz Kodu

yes
