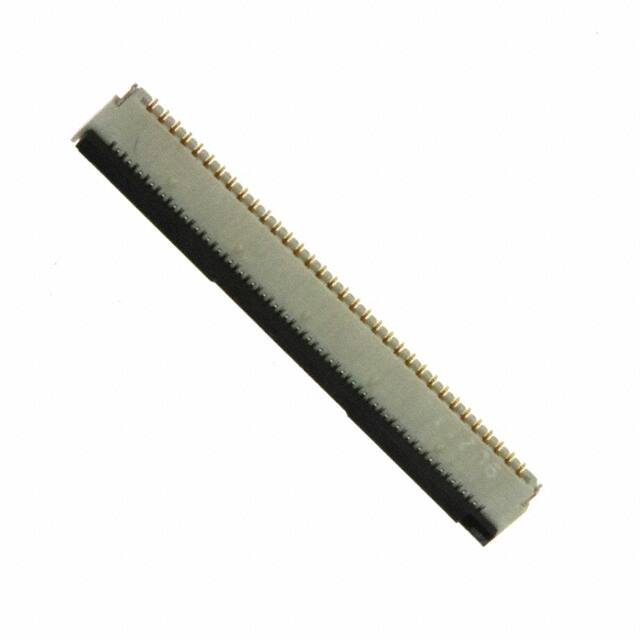

FH39A-67S-0.3SHW(99)

Teknik Özellikler

Insulation Resistance

50000000Ohm

REACH Uyumluluk Kodu

unknown

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered

Current Rating Amps

0.2A

Body Length Or Diameter

0.878 inch

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

67

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Pozisyon Sayısı

67

Body Breadth

0.043 inch

Actuator Material

Polyamide (PA), Nylon

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock, Backlock

Mating Cycles

10

Reference Standard

UL

Number Of Pcb Rows

2

Terminal

Solder

Parça Durumu

Active

Pcb Contact Row Spacing

3.0734 mm

Çalışma Sıcaklığı

-55°C~85°C

Nominal Gerilim

30V

Seri

FH39A

Contact Style

BELLOWED TYPE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Dielectric Withstanding Voltage

120VAC V

Pcb Contact Pattern

STAGGERED

Housing Color

Beige

Reliability

COMMERCIAL

Body Depth

0.14 inch

Height Above Board

0.044 1.12mm

Flat Flex Type

FPC

Actuatorcolor

Black

Akım Değeri

200mA

Özellikler

Zero Insertion Force (ZIF)

Insertion Forcemax

ZIF N
